SMARTASH

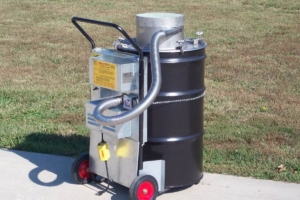

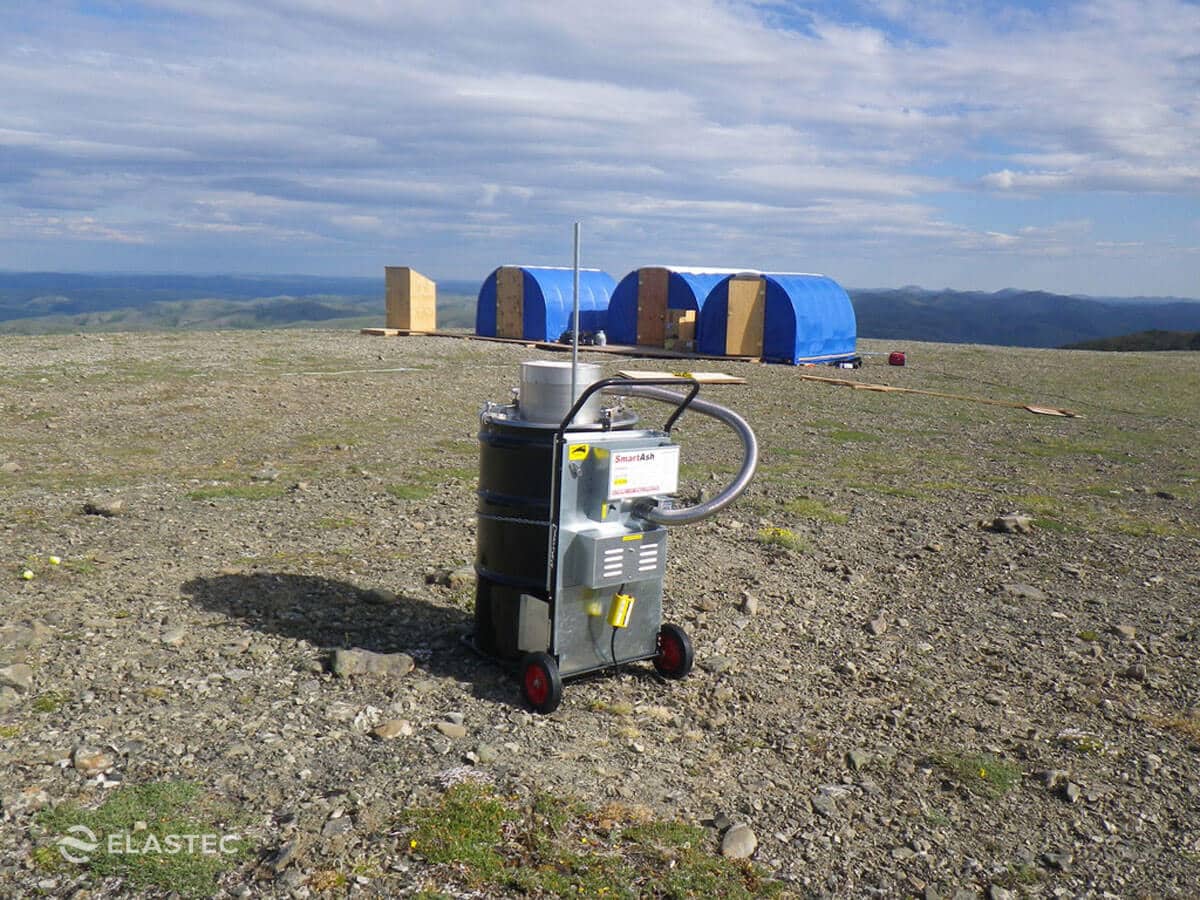

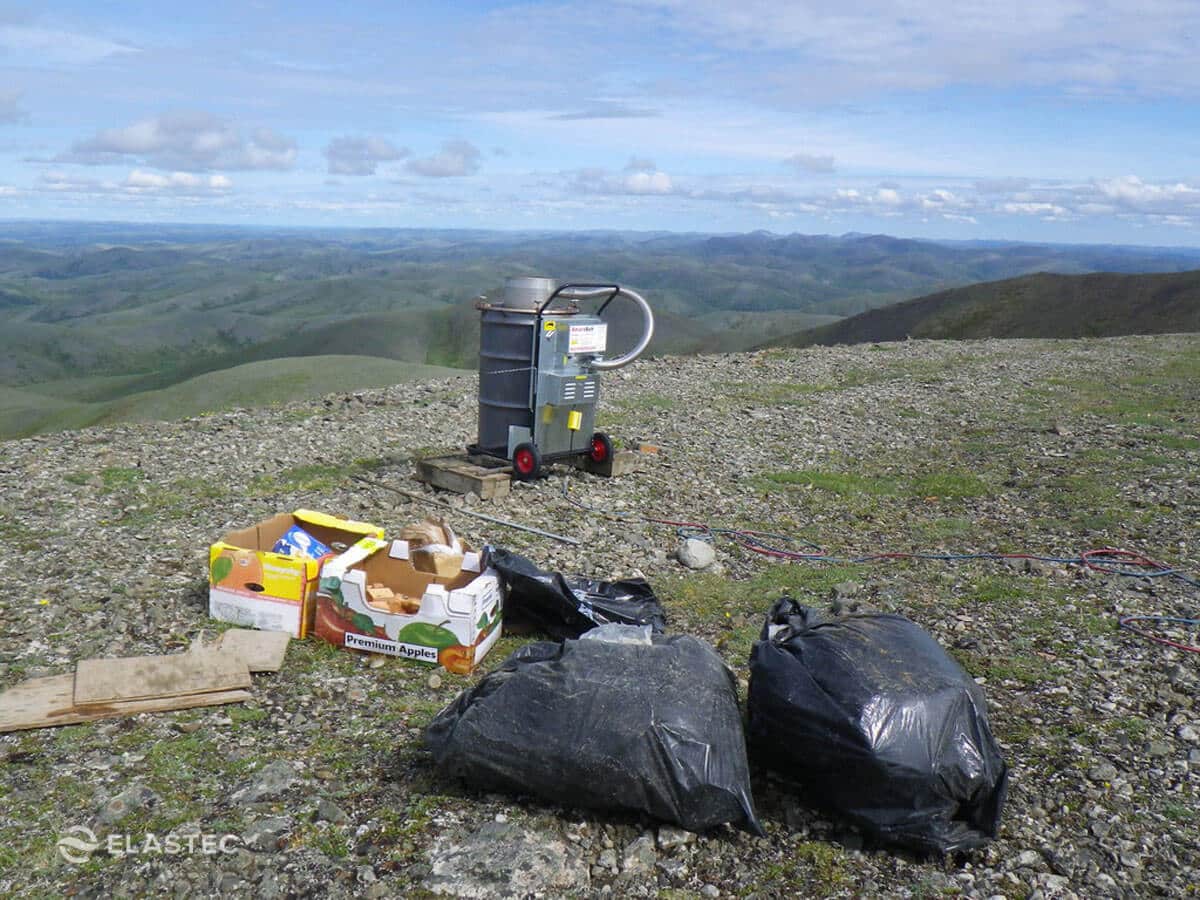

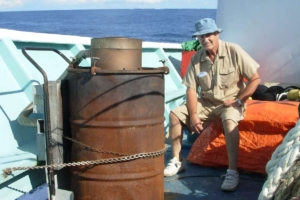

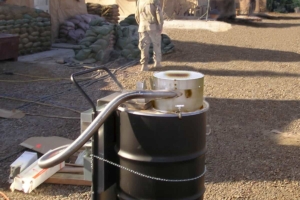

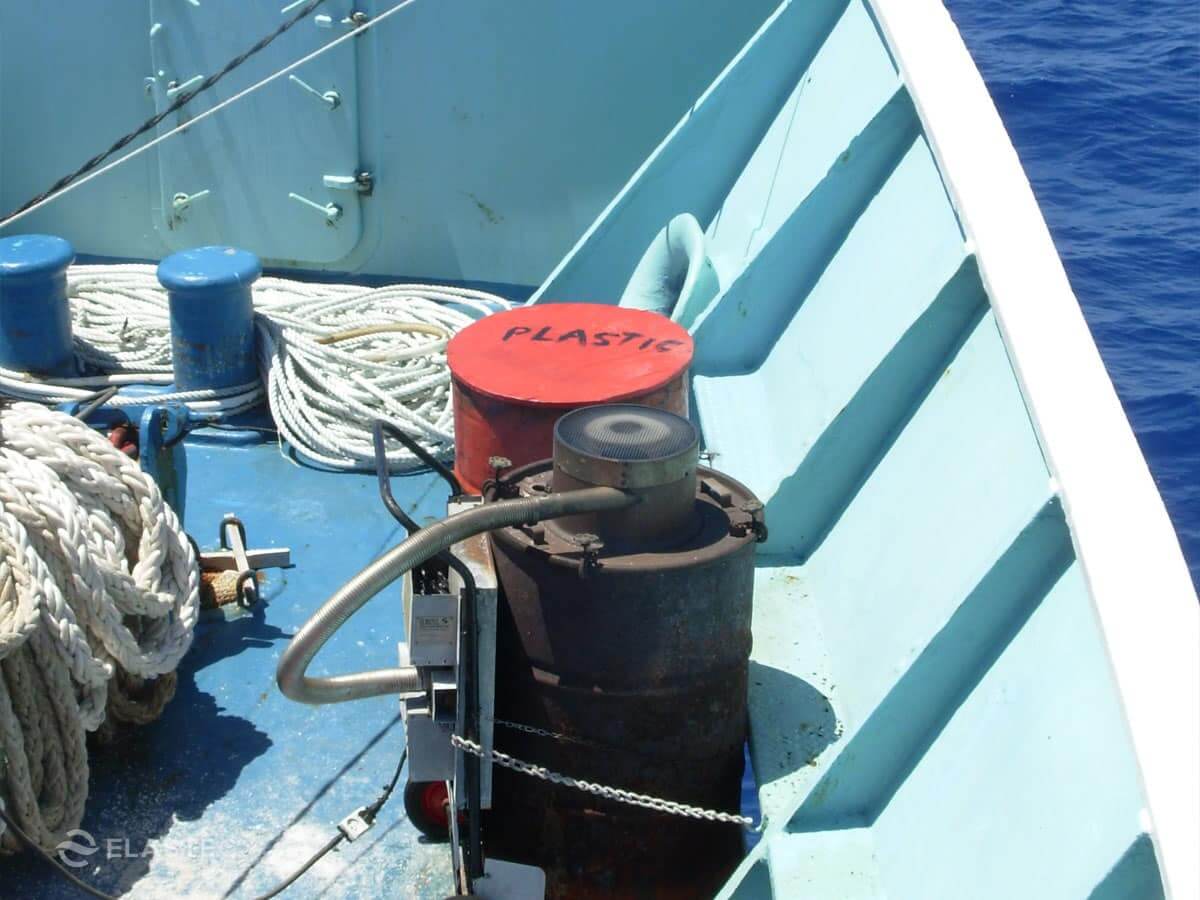

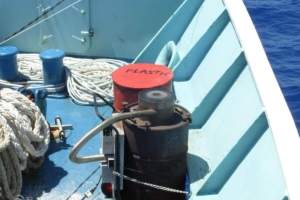

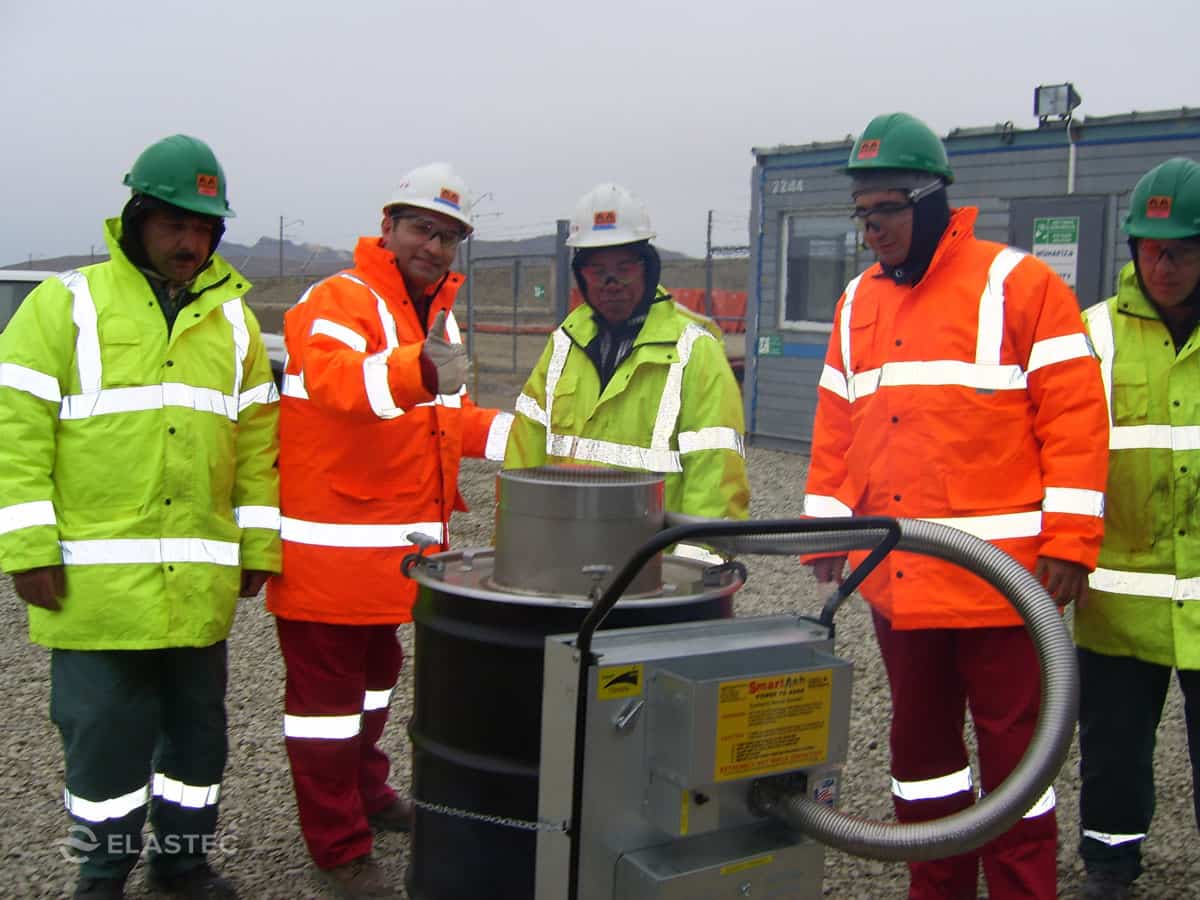

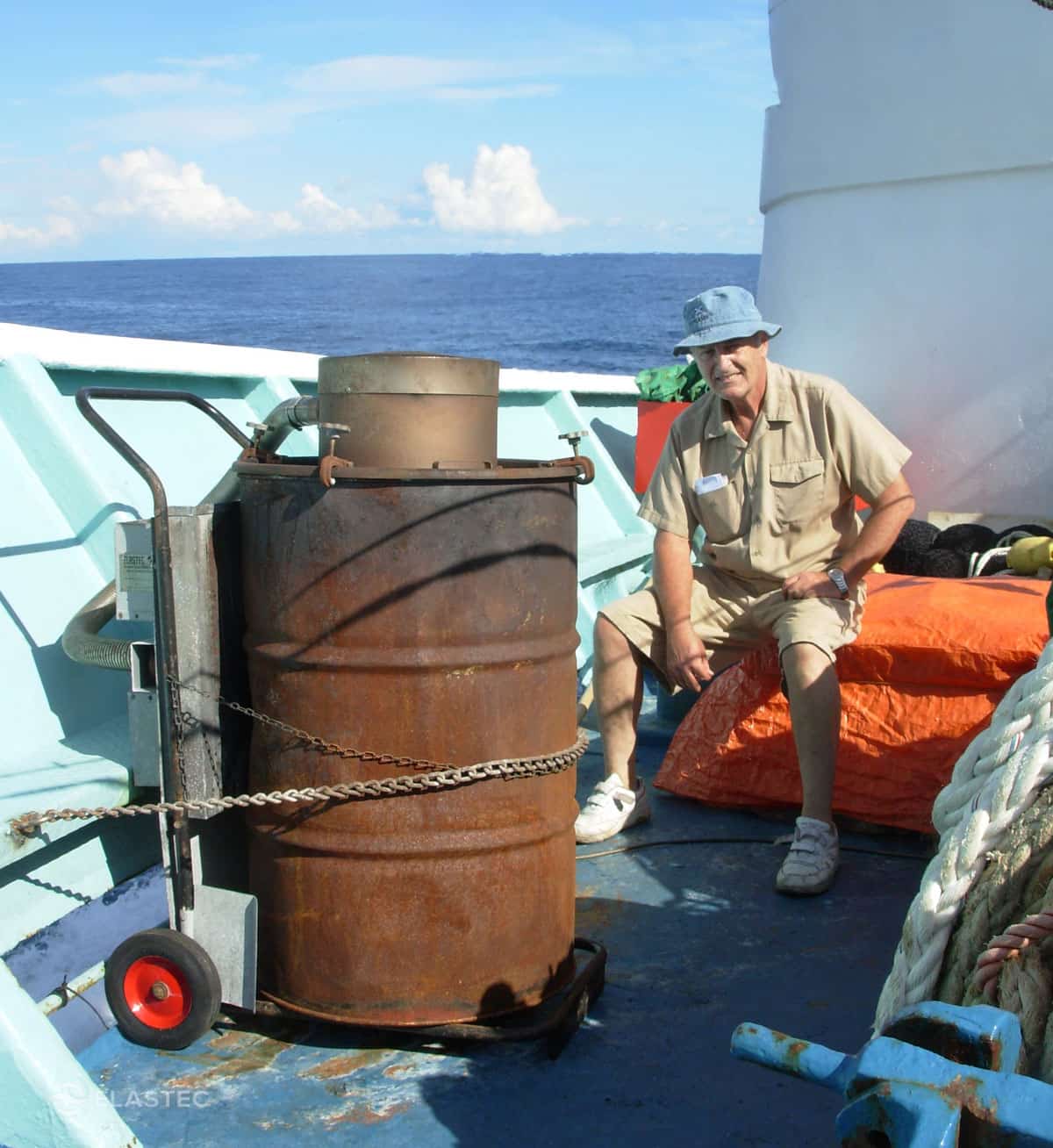

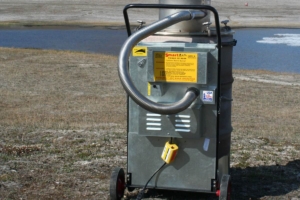

SmartAsh® cyclonic barrel burner is an innovative portable incinerator. Read our FAQ. Simply load a 55 gal / 208 L open-head steel drum, light the load and clamp on the lid. A whirlwind of fire and intense heat is created inside the drum, burning refuse without smoke or smell. Once combustion is complete only 3% ash remains. The SmartAsh mobile incinerator is ideal for remote locations with limited facilities for disposing of waste, such as mining, military, camps, expedition bases, and remote communities, etc. The Oil Away attachment can also be used to burn waste oils that may be hard to recycle in remote areas. It has also been used on-board ships. View a list of items that are burnable with SmartAsh. The SmartAsh falls into the category of Cyclonic Barrel Burner covered by EPA Regulation 40 CFR Part 60 (Standards of Performance) exempted under section 60.2555. Always contact your regulatory authority before use. Please fill out our questionnaire to help us determine the type of barrel burner you may need. Order replacement parts for the Elastec SmartAsh Incinerator.
Thousands of satisfied customers are currently using SmartAsh around the world to eliminate a wide variety of burnable waste materials. Elastec also manufactures the Drug Terminator which was designed for the elimination of evidence drugs and prescriptions collected at take-back programs.
The SmartAsh mobile incinerator can be used with or without fuel. For dry loads that support combustion, SmartAsh incinerates waste with incredible efficiency. Simply light the fire, place the lid and turn up the blower to create an intense fire. For loads having a moisture content above 15%, the SmartAsh with OilAway Attachment provides a unique fuel injection system that allows the incineration of a large variety of refuse and waste materials. This innovative, small, portable incinerator can be shipped by parcel post.
Exhausted heat can be recovered using the SmartHeat accessory, this waste to heat system maximizes the calorific value of the waste, reducing environmental impact.
US Norm ANSI/ASC MH2-1985 • 22 1/2 in ± 1/16 I.D.
European Standard EN 209 • 571.5mm +1/-0.5 I.D.
Contact us to learn more.

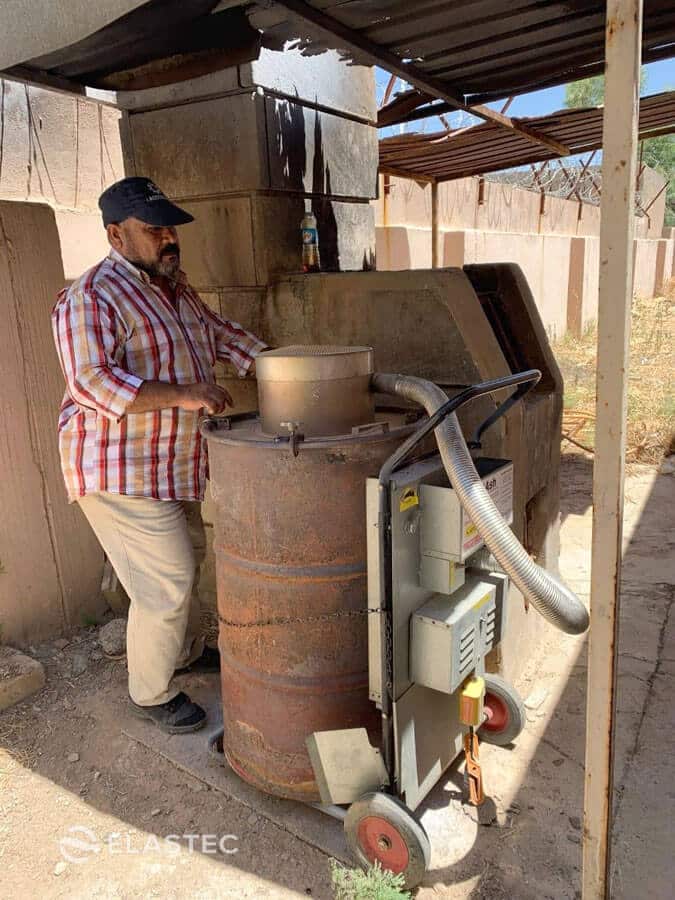

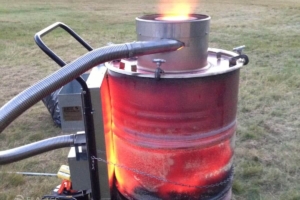

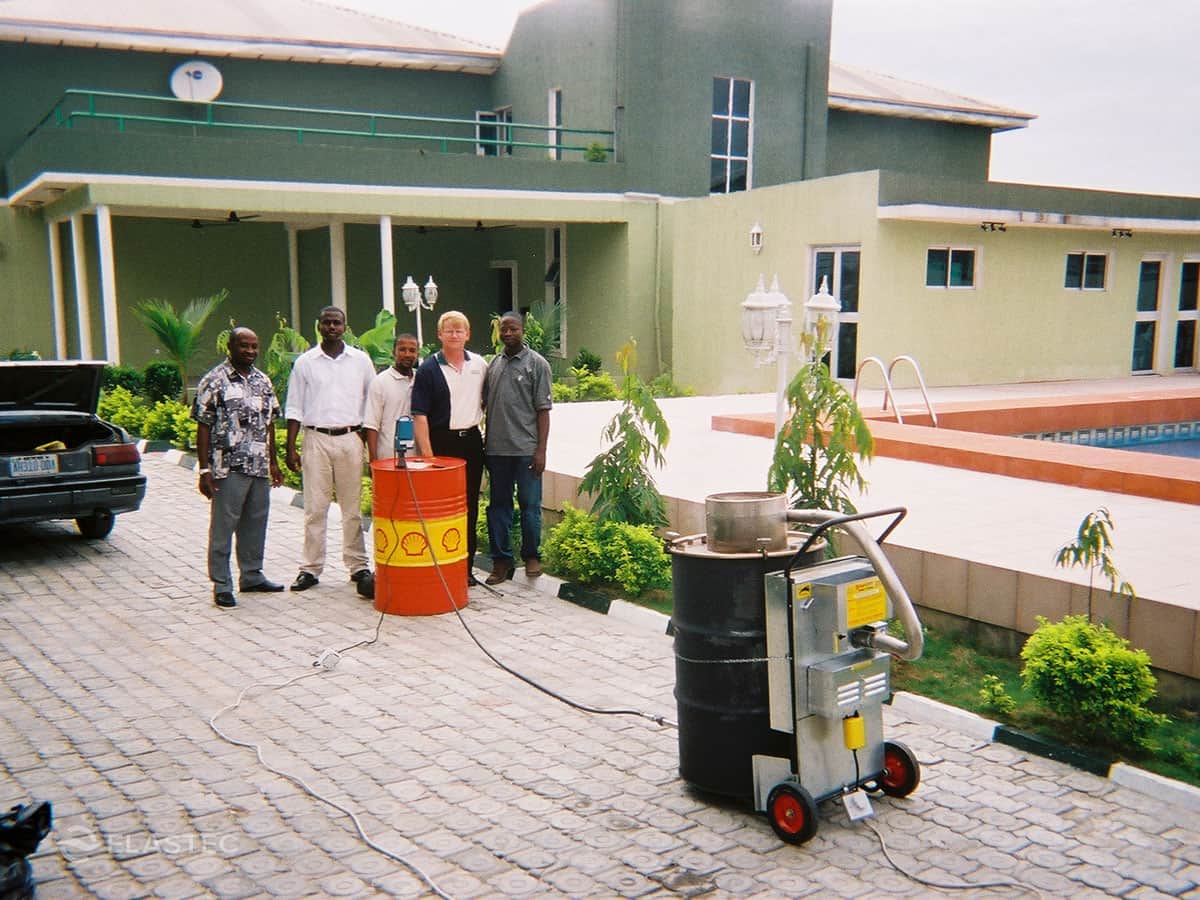

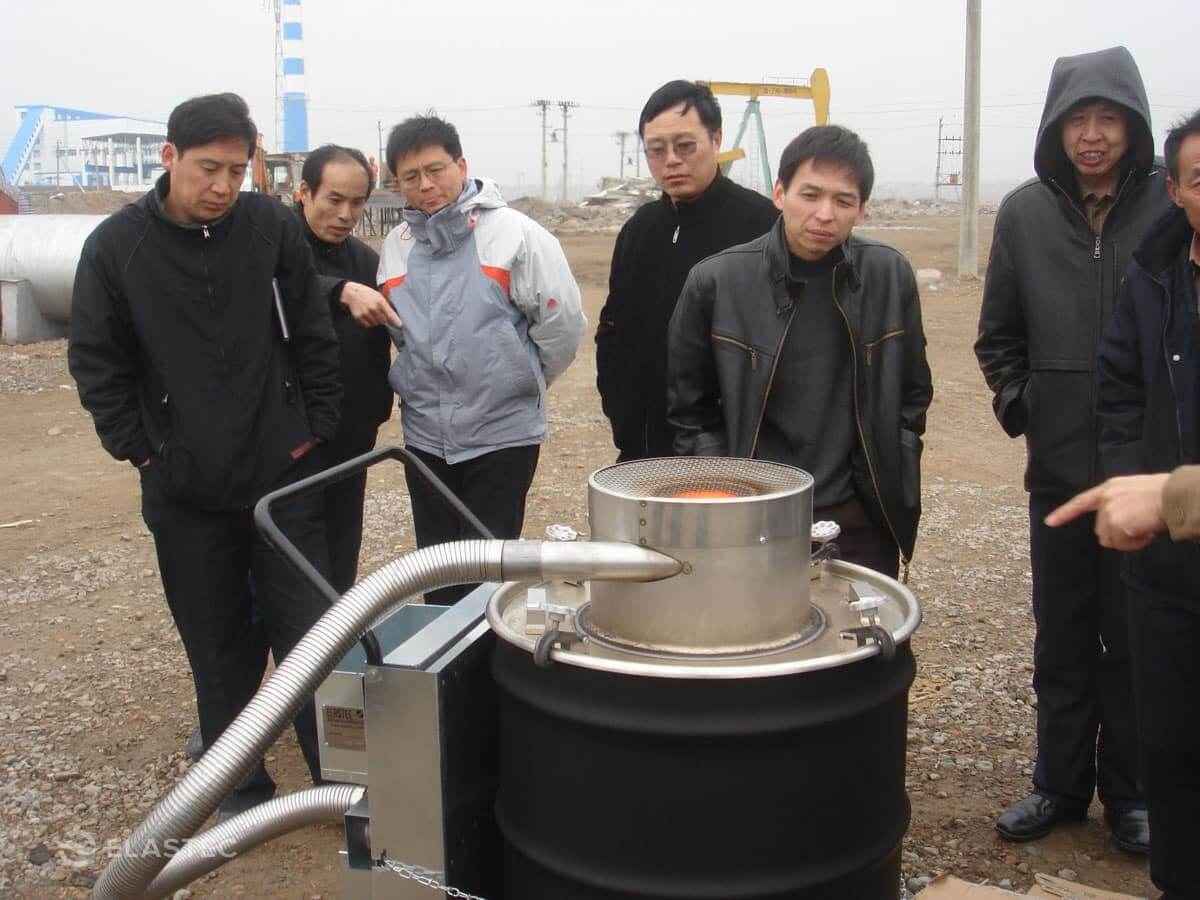

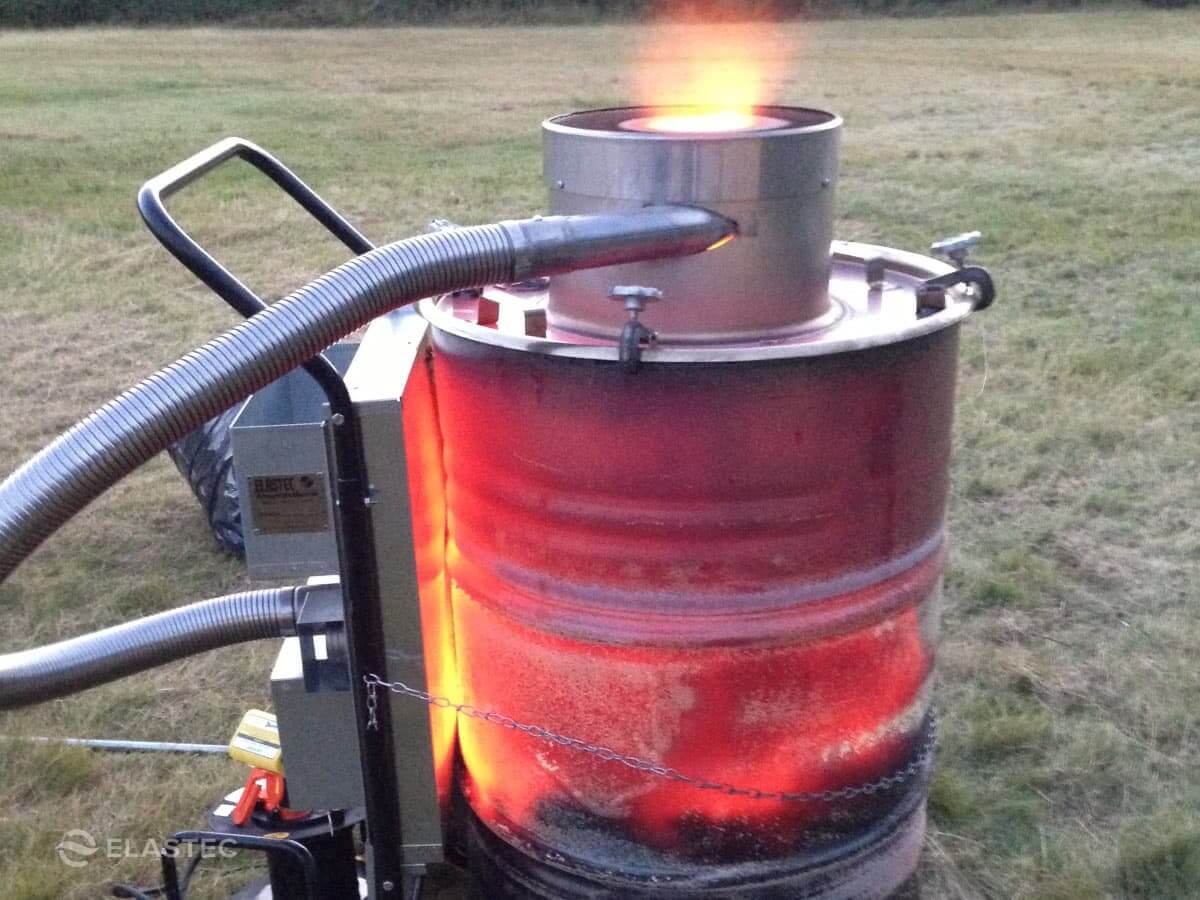

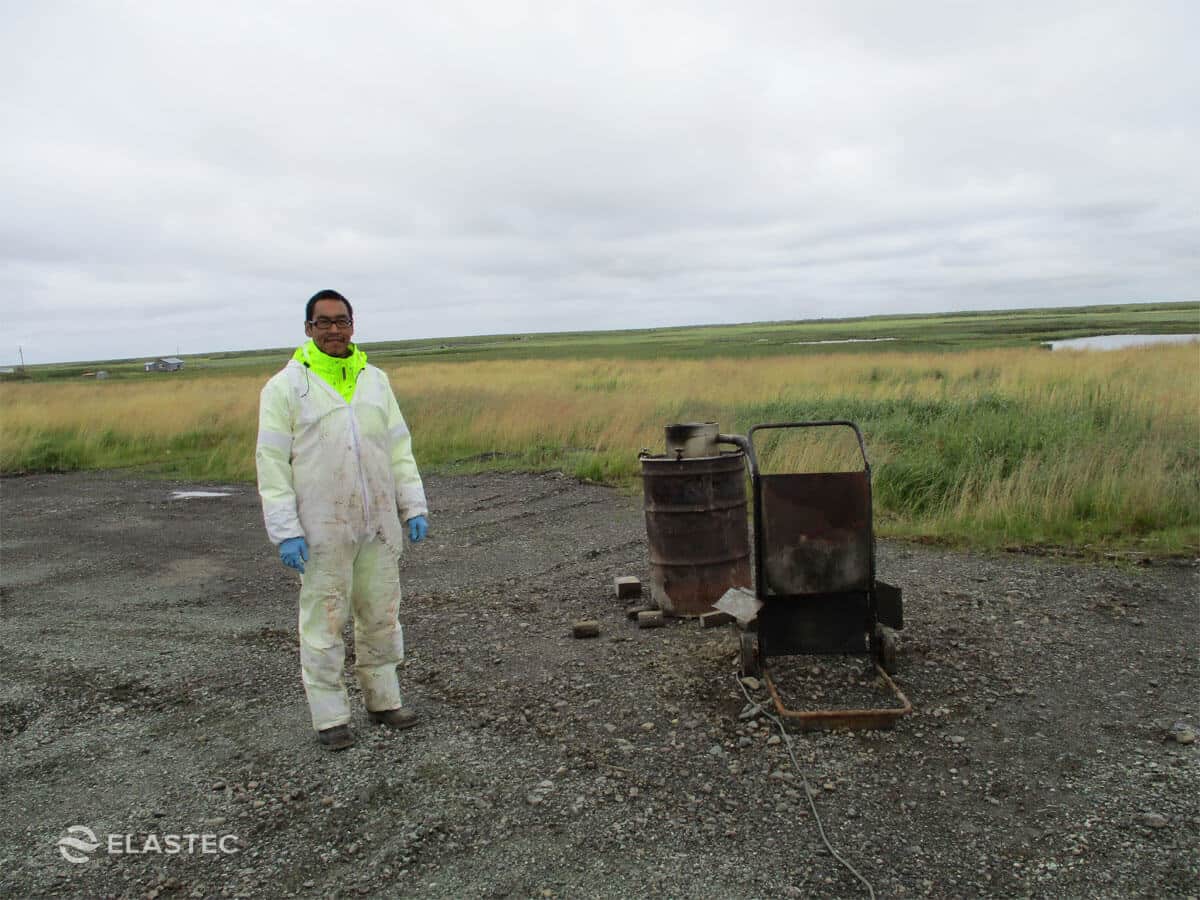

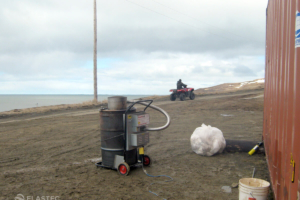

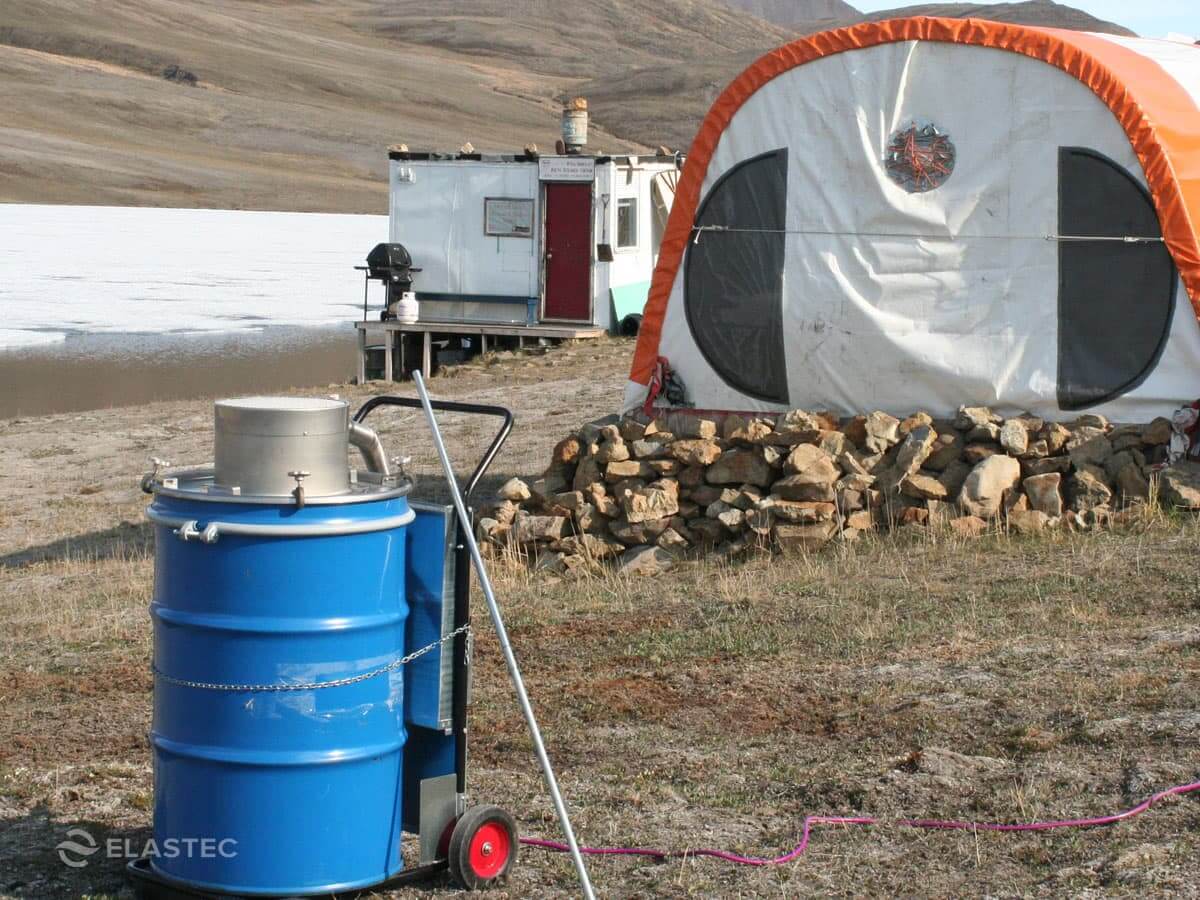

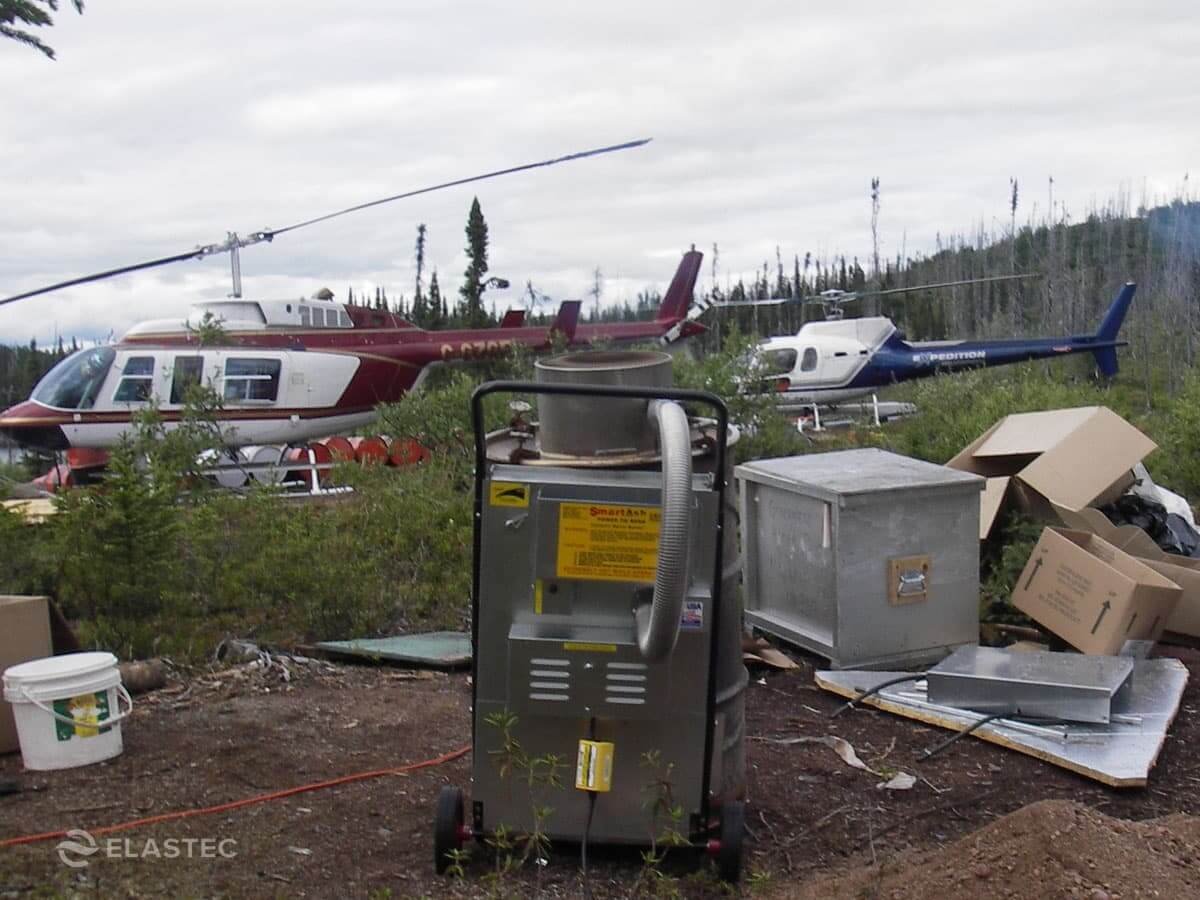

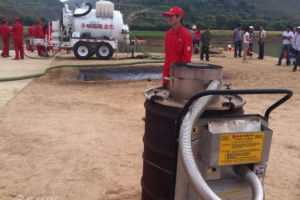

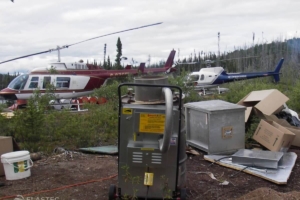

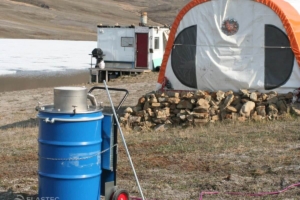

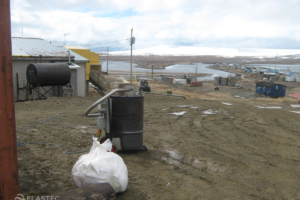

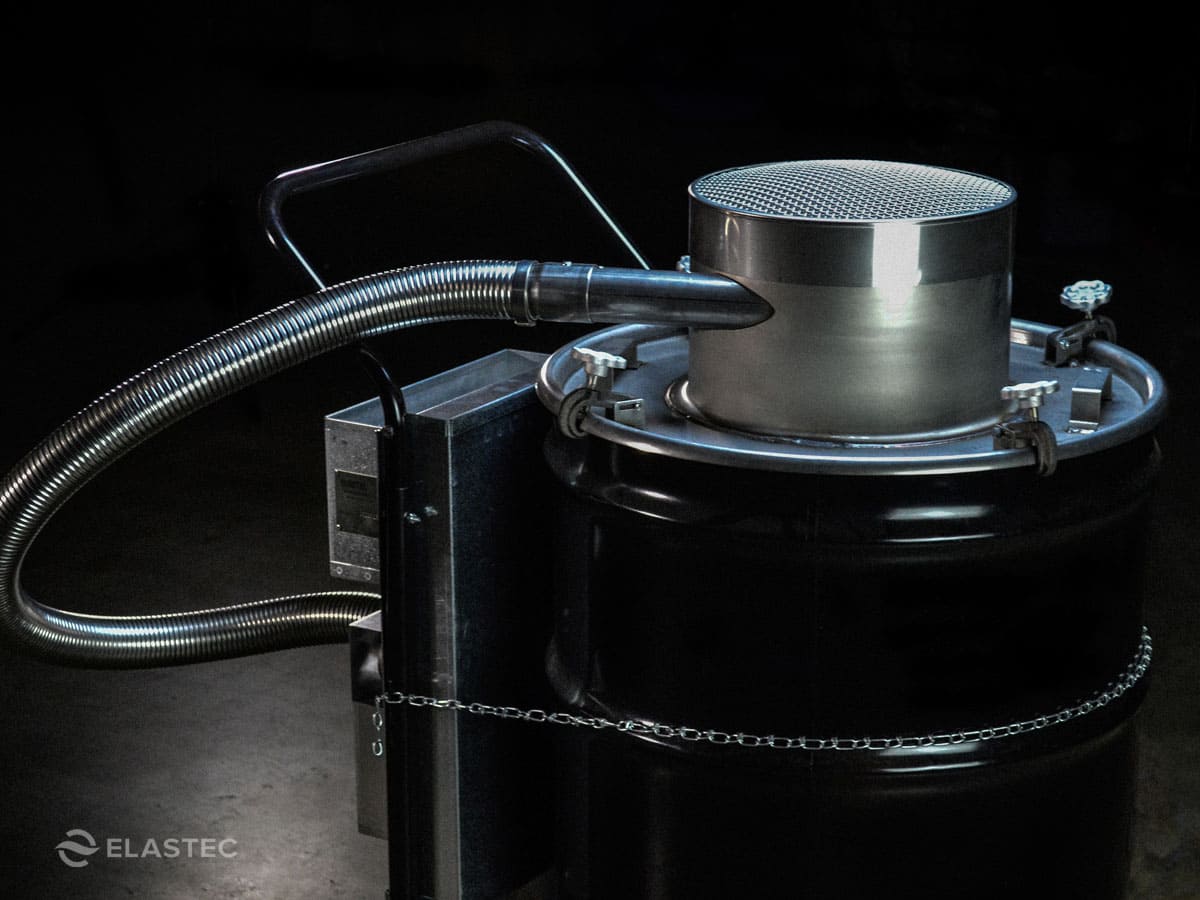

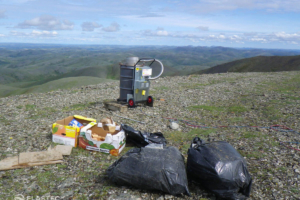

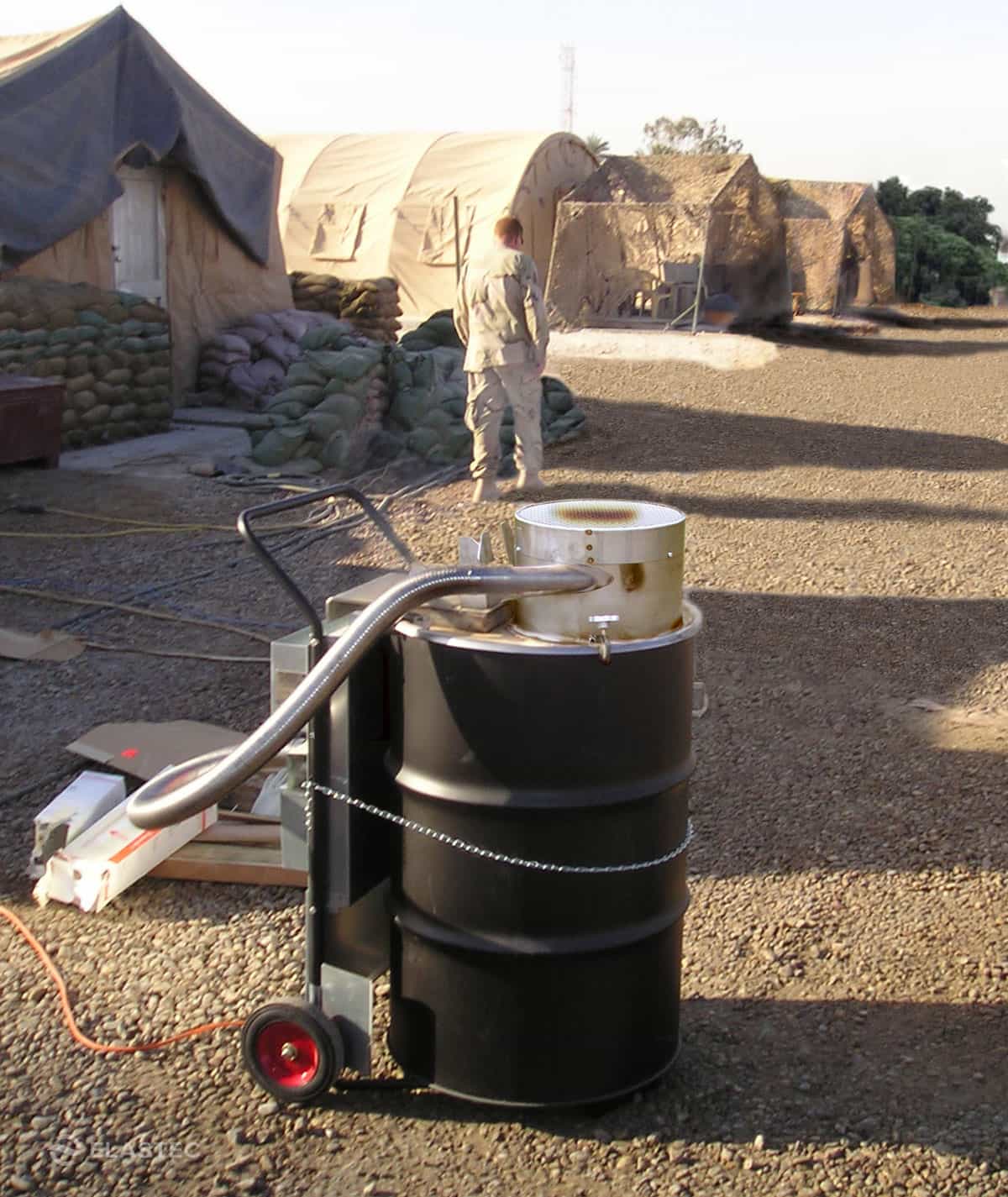

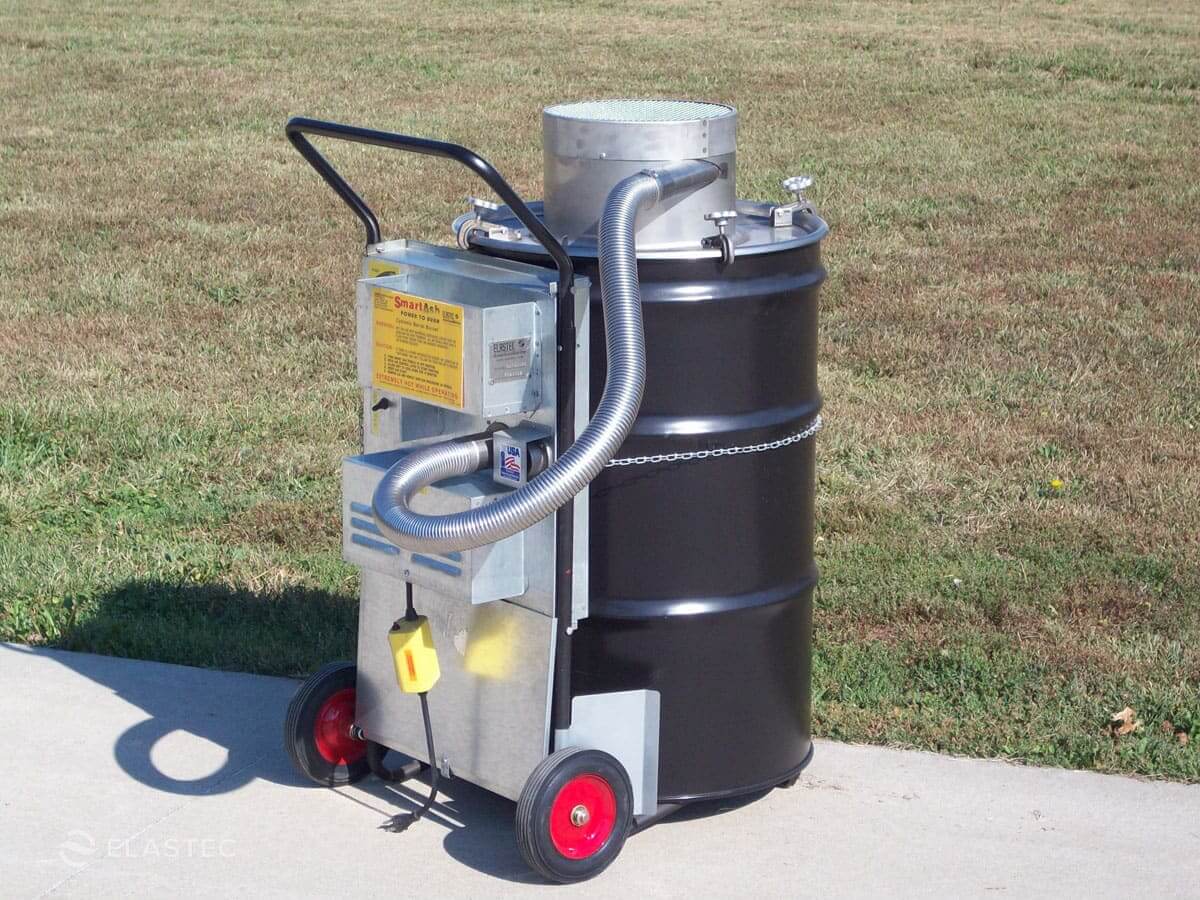

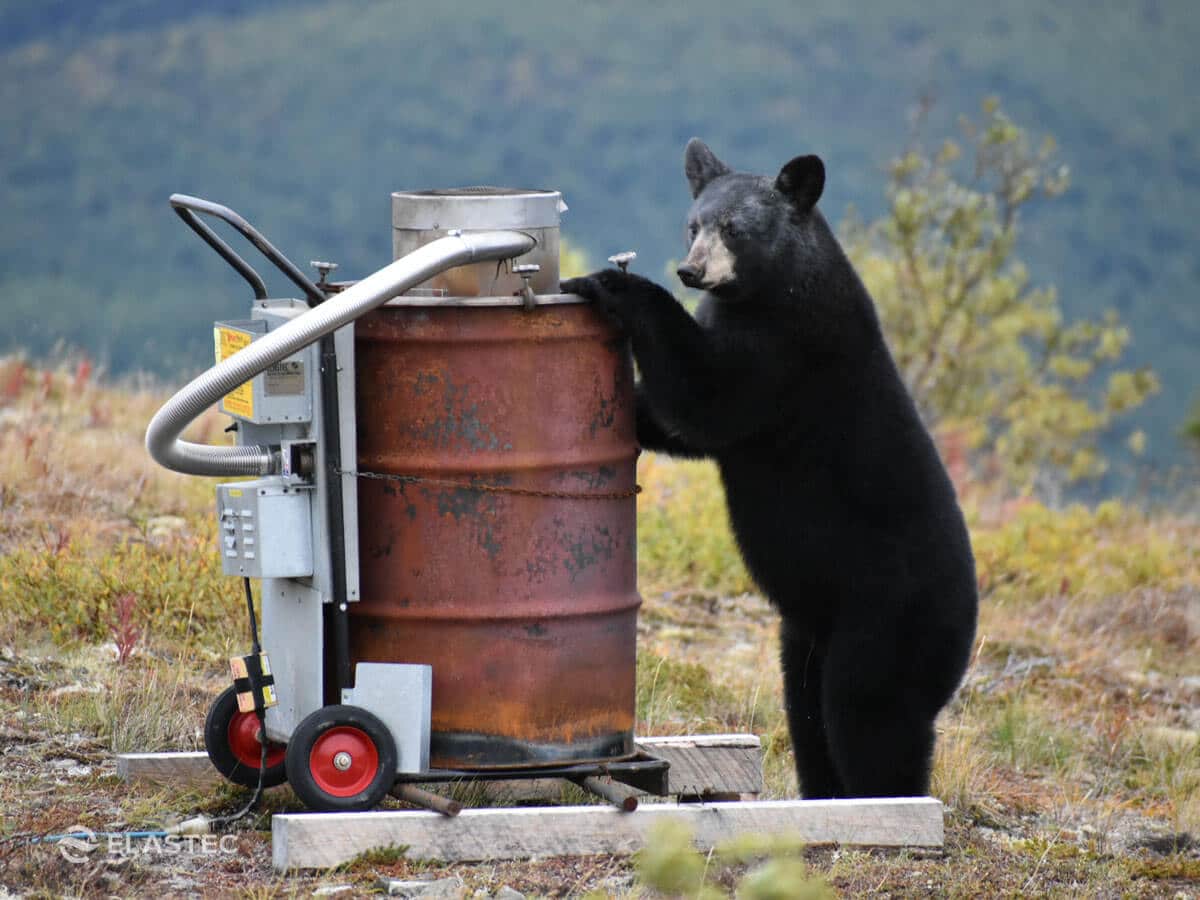

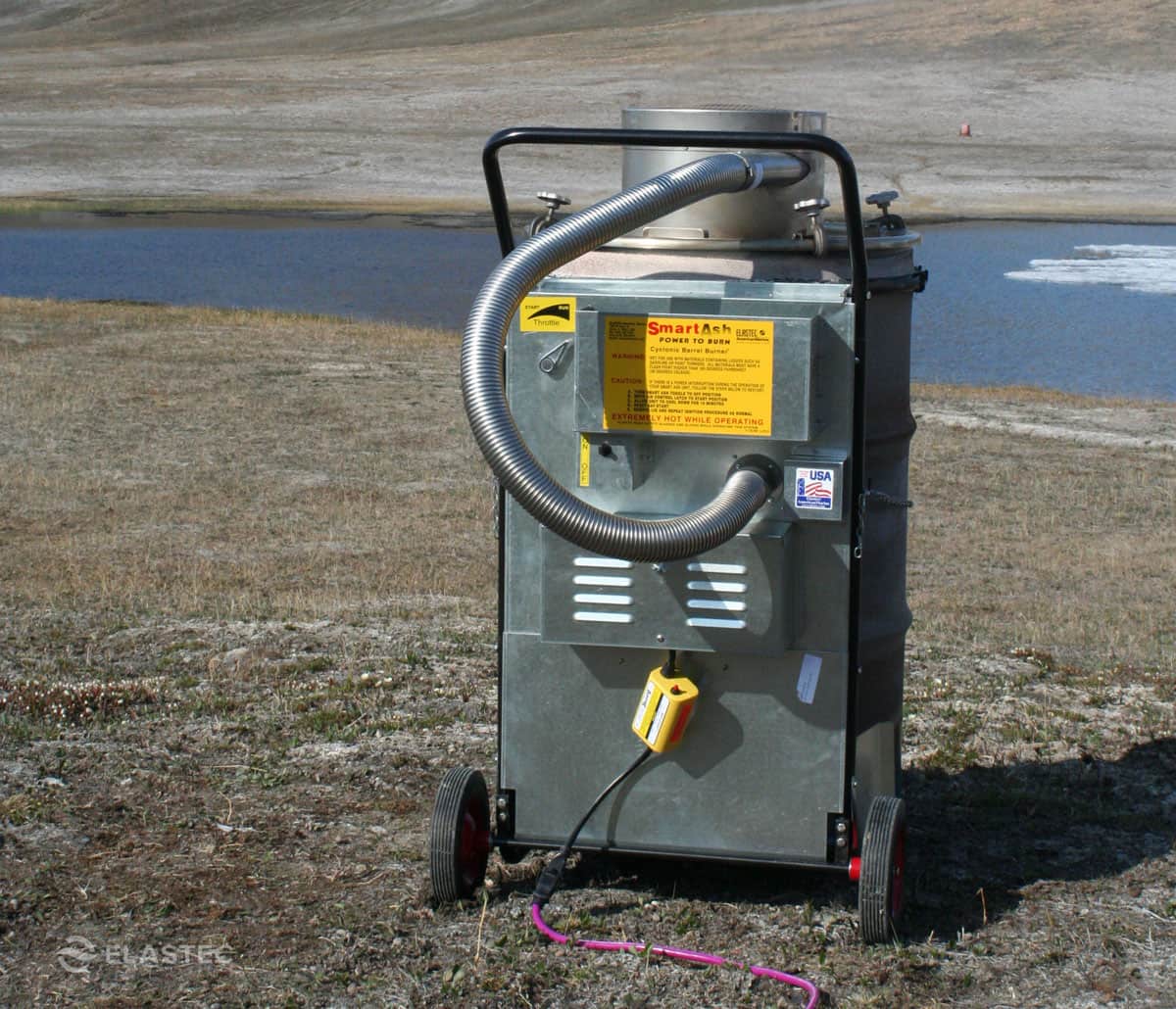

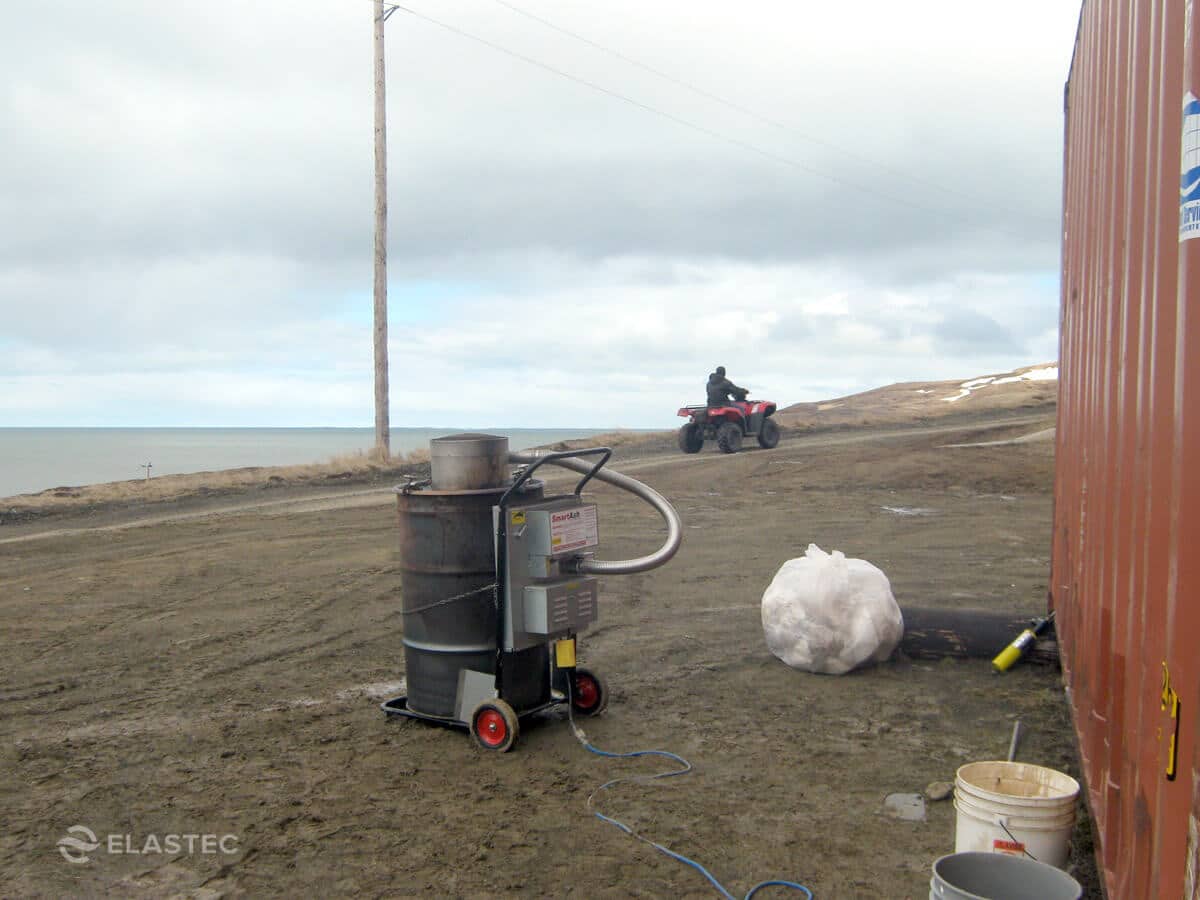

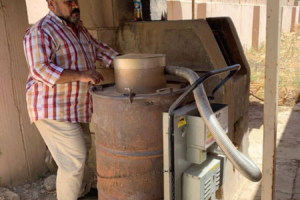

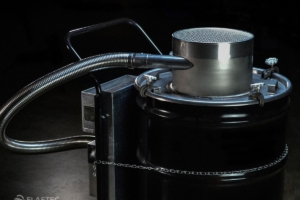

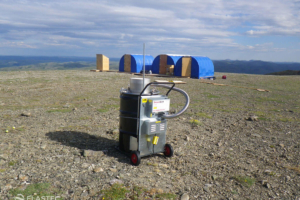

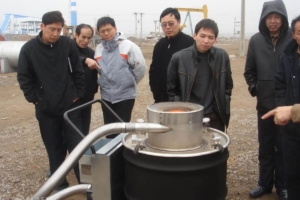

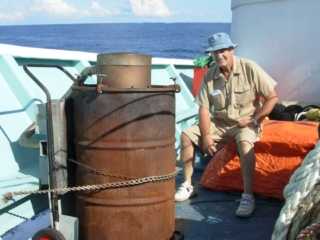

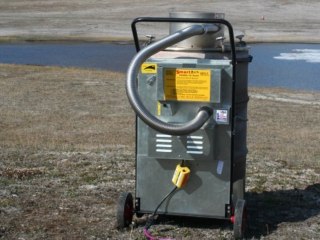

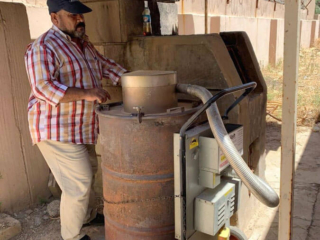

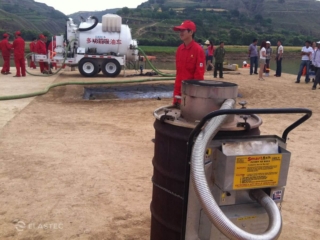

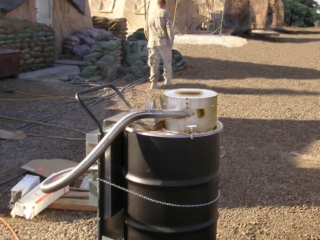

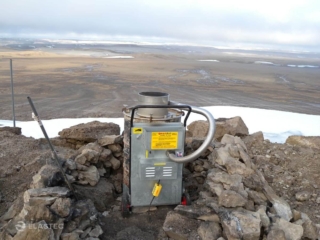

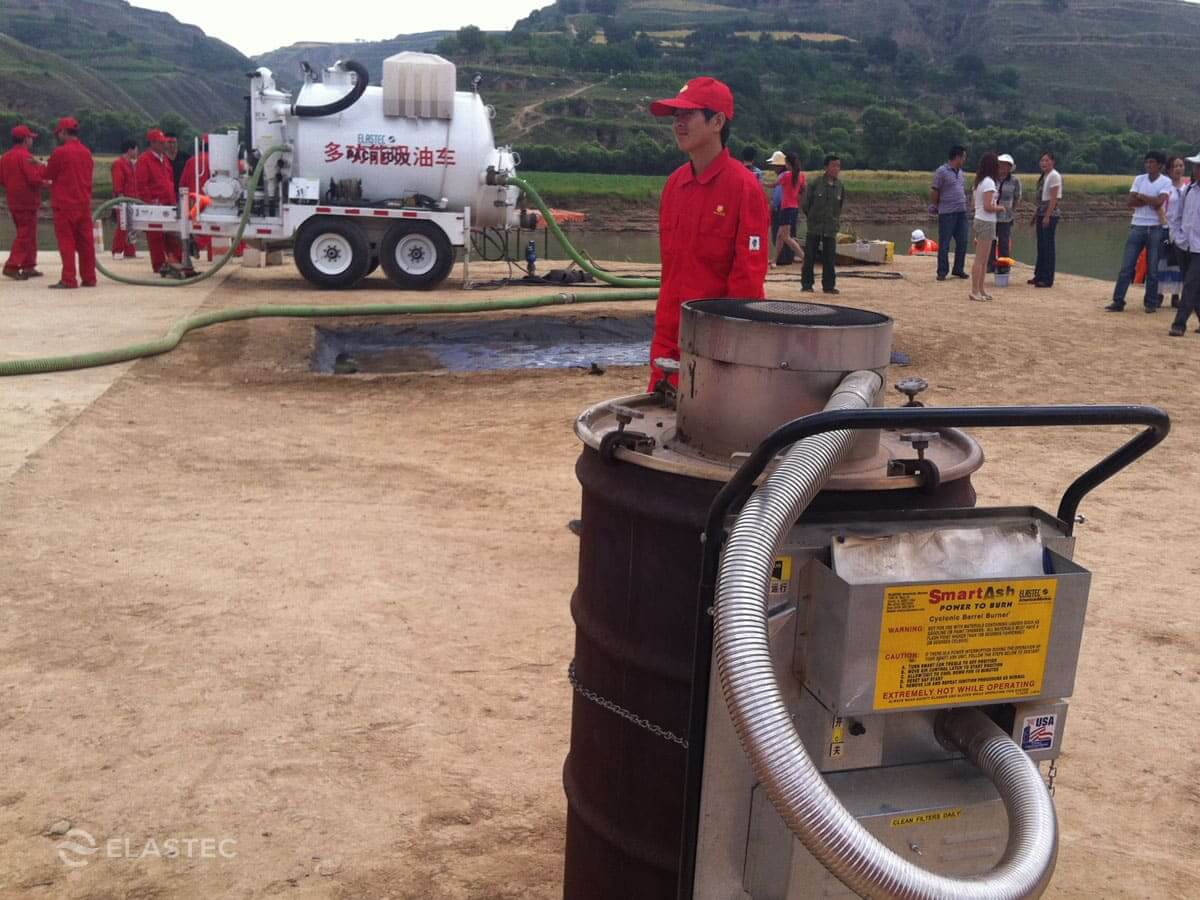

SMARTASH PHOTOS
SMARTASH VIDEO

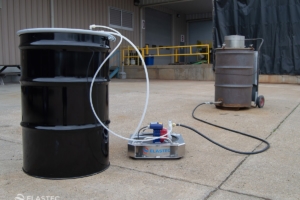

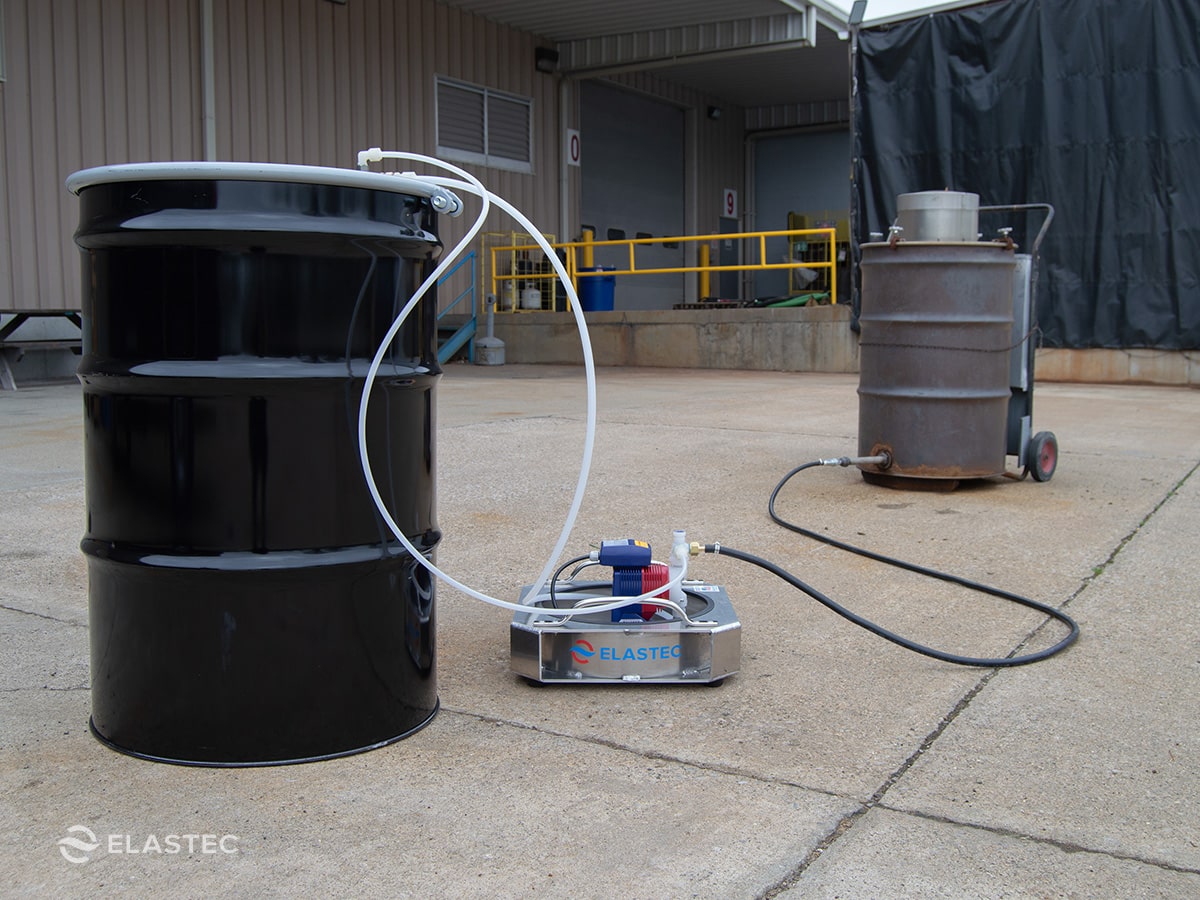

OilAway Attachment
The OilAway Attachment is an accessory for the SmartAsh Cyclonic Barrel Burner that injects waste oil into the barrel during the burn cycle. This allows the SmartAsh to burn “wet” loads typically not burnable. SmartAsh with the OilAway Attachment also eliminates waste oil at rates up to 6 gal/hr / 23 L. Available in 110 volt and 220 volt versions.
Document Burner
The Document Burner is an insert that fits into the drum. This insert insures complete incineration of paper products and important documents when no other high BTU material is added.
Easy-Feed Lid and Cartridge
The Easy-Feed Cartridge allows operators to inject refuse into the barrel while the unit is in operation.
SmartHeat
SmartHeat is more than a furnace, it is an environmentally intelligent way to burn used absorbent materials on-site and to generate “free heat” at the same time. It eliminates waste management costs and worry over long term and second-person contamination liability. On-site burning of used absorbents is a “free fuel” creating a cost-saving auxiliary heat source for your facility.
SmartHeat is easy to operate. Simply load the SmartAsh with oily waste, ignite, and clamp on the lid. Switch on SmartHeats’ 1000 cfm blower. Vented to ambient air, SmartHeat pulls cool air from inside the building, forces it through the exterior heat exchanger (located above SmartAsh ), and returns heated air to assist in warming the facility. The super-heated air provides up to 400,000 Btu per hour of auxiliary “Free Heat”.
EPA Approval: Elastec’s SmartHeat energy recovery furnace complies with EPA ruling, 40 CFR#279.10 and management standards 40 CFR#279.23 (c), regulating the on-site burning of materials contaminated with oil.
APPLICATIONS
- Mining Camps
- Expeditionary Bases
- Remote Communities
- Police Departments
- Oil Spill Cleanup Operations
- Ship / Rig Waste
- Disaster Relief Operations
- Military Bases
SmartAsh Frequently Asked Questions
Does the price include the drum?
No
What kind of drum is needed?
A standard, 55-gallon, open-head style drum. They are typically easy to source locally.
How hot does it get?
The SmartAsh typically burns at 1,000 – 1,400F
What can I burn with this?
The SmartAsh will burn all non-hazardous waste. This includes household trash, oil waste, office waste, food waste (with Oil Away Attachment), camp waste, etc.
Can I use this where I live?
The SmartAsh falls into the category of Cyclonic Barrel Burner covered by EPA Regulation 40 CFR Part 60 (Standards of Performance) exempted under section 60.2555. Always contact your regulatory authority before use.
LIST OF BURNABLES FOR SMARTASH
Absorbent Types
- Cellulose base types
- Polypropylene & cotton mix
- Saw dust
- Cotton
- Corn cobs
- Peat moss
Hydrocarbons*
- All types of crude oils
- Used motor oils
- Lubricating greases
- Diesel fuels #1 & #2
- Jet fuels (flash point above 100°F)
- Waste oils
Filters
- Spin on and cartridge oil filters from cars, trucks, and heavy equipment
- Air filters of all types
- Poly & fiberglass filters
- Natural gas pipeline filters (glycol filters)
Paper Products
- Newspapers
- Cardboards
- Computer paper
- Office waste
- Fast food paper wastes
- Sensitive documents
Wood Products
- Saw dust
- Scrap at construction sites
- Shipping pallets
- Tree limbs & leaves
- Any type of wood product
Plastics
This unit will incinerate a wide variety of plastics. The volatile emissions emitted by these types of material are not acceptable in the permitting requirements.
Miscellaneous
- Clothing
- Oily rags
- Gloves
- Packaging material
Non-Hazardous Medical Waste
- Linens
- Rags
- Wipes
- Masks
Plastics
This unit will incinerate a wide variety of plastics. The volatile emissions emitted by these types of material are not acceptable in the permitting requirements.
*Can be incinerated by using the Oil Away attachment.
Barrel Burner Questionnaire
Thank you for considering Elastec Incinerators for your waste disposal needs. We have included some questions that will help us better understand your needs. Please answer as many as possible.
