ROV Skimmer

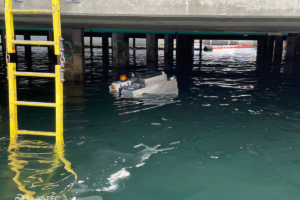

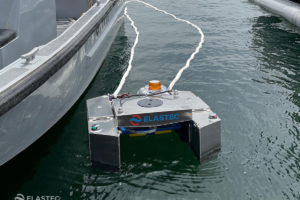

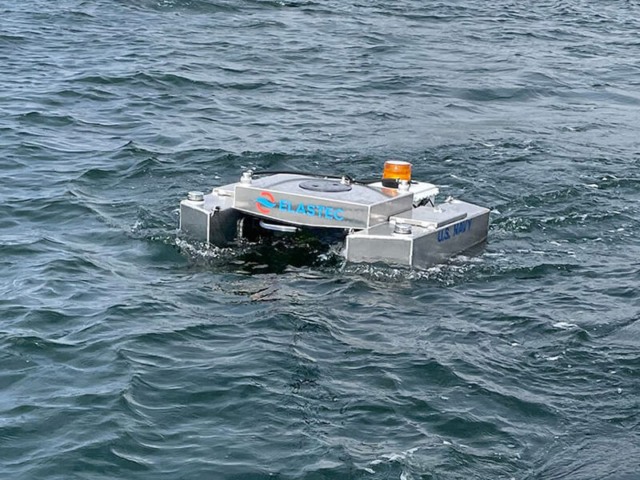

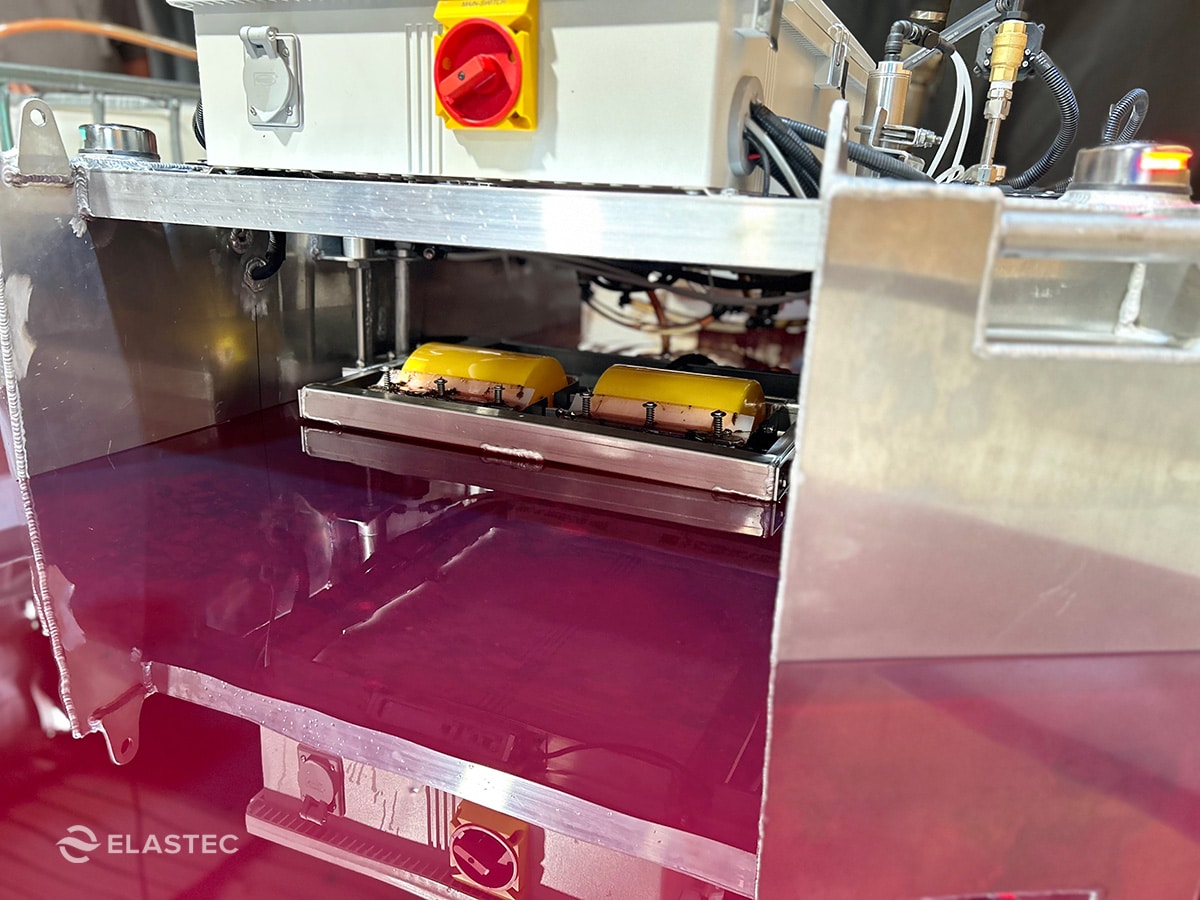

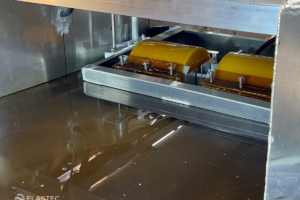

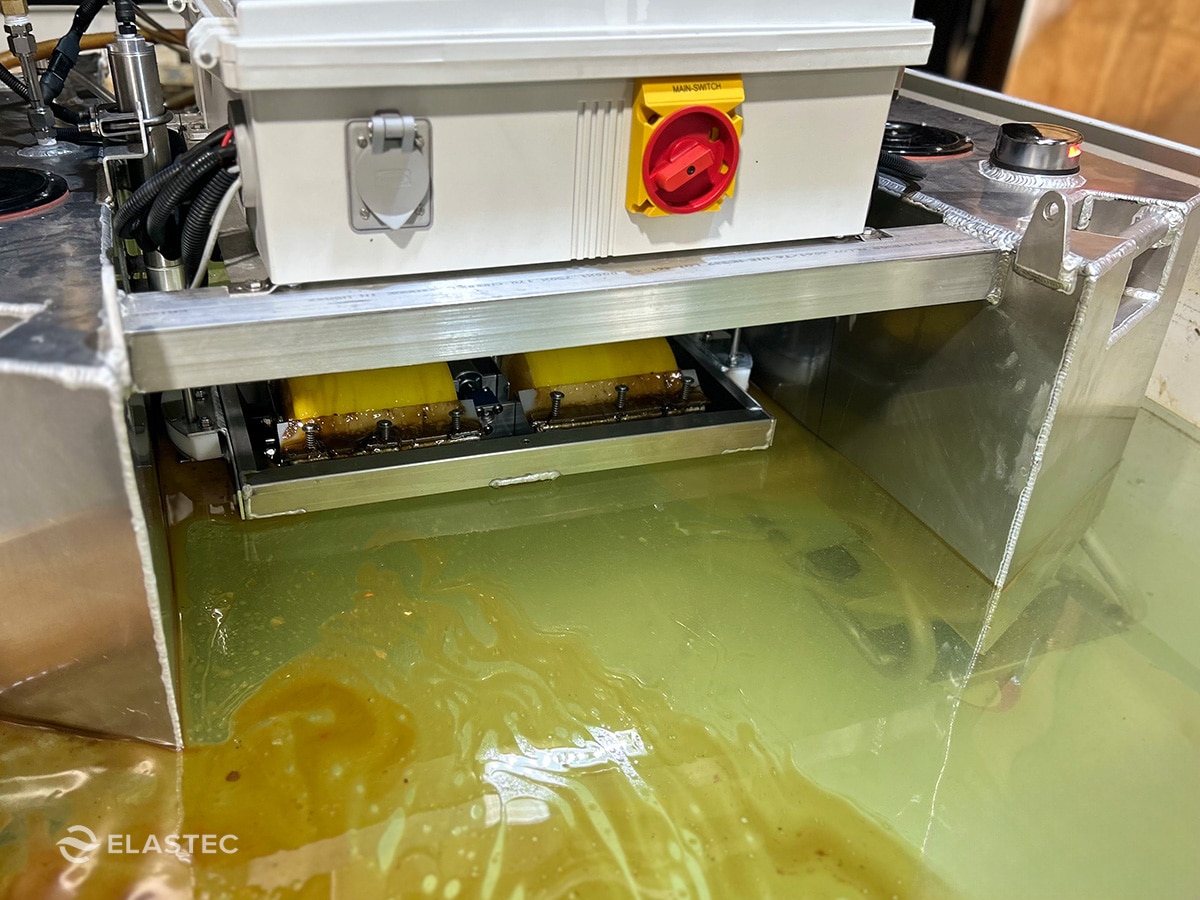

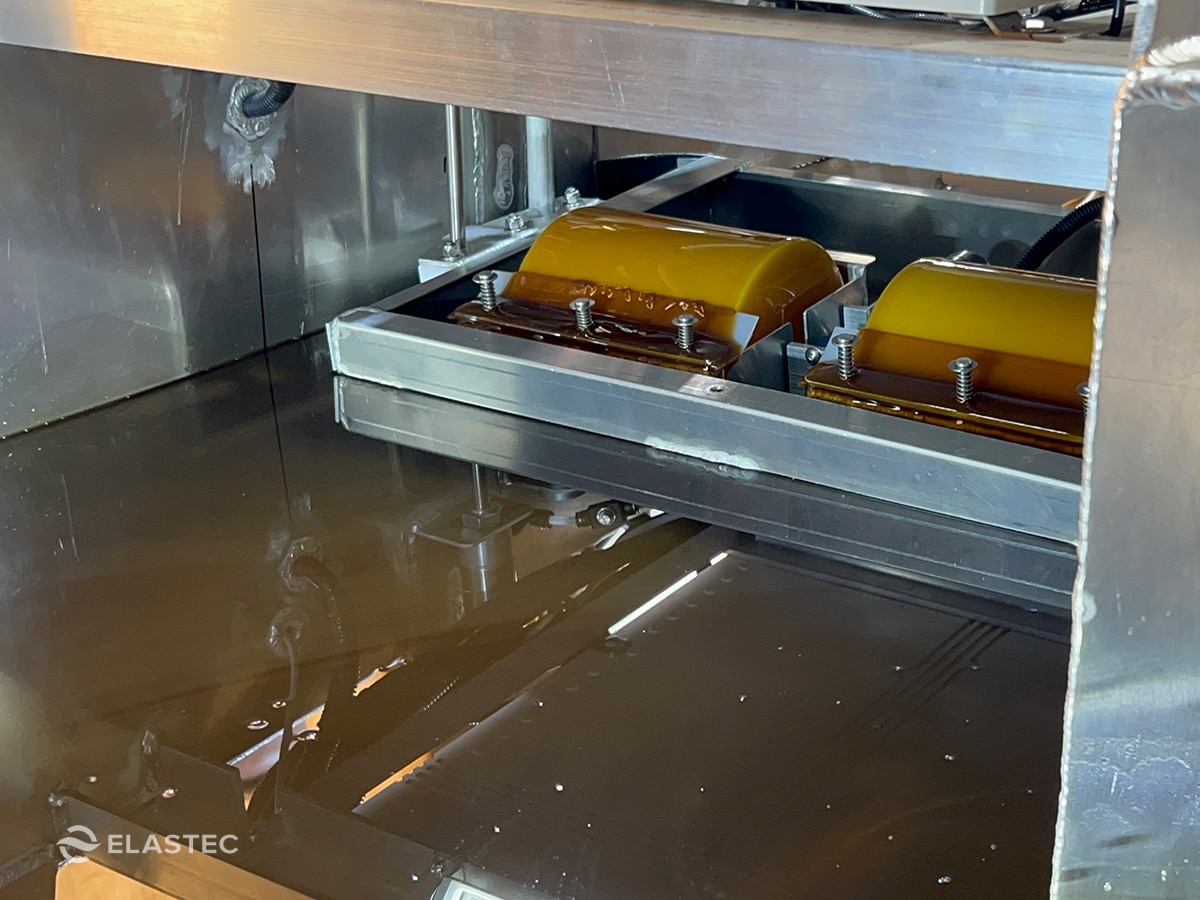

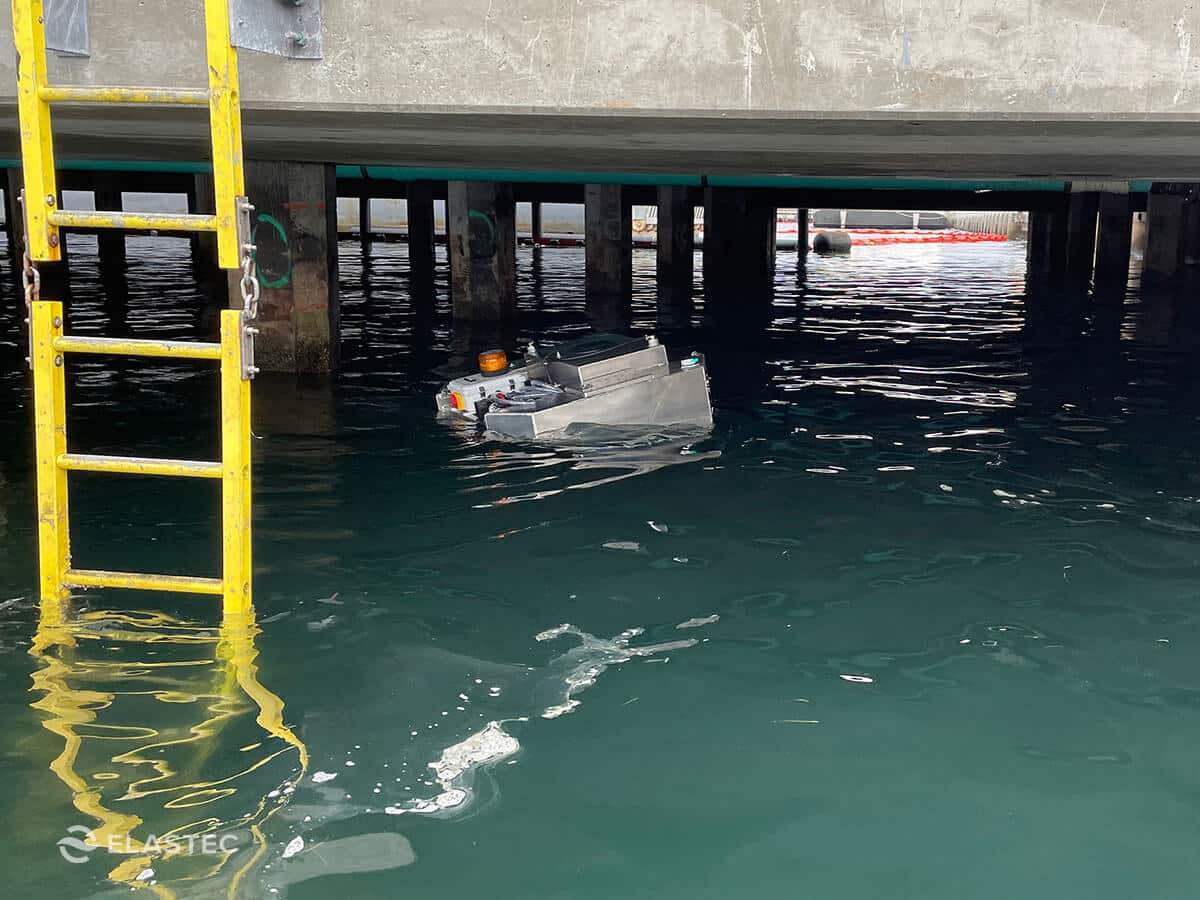

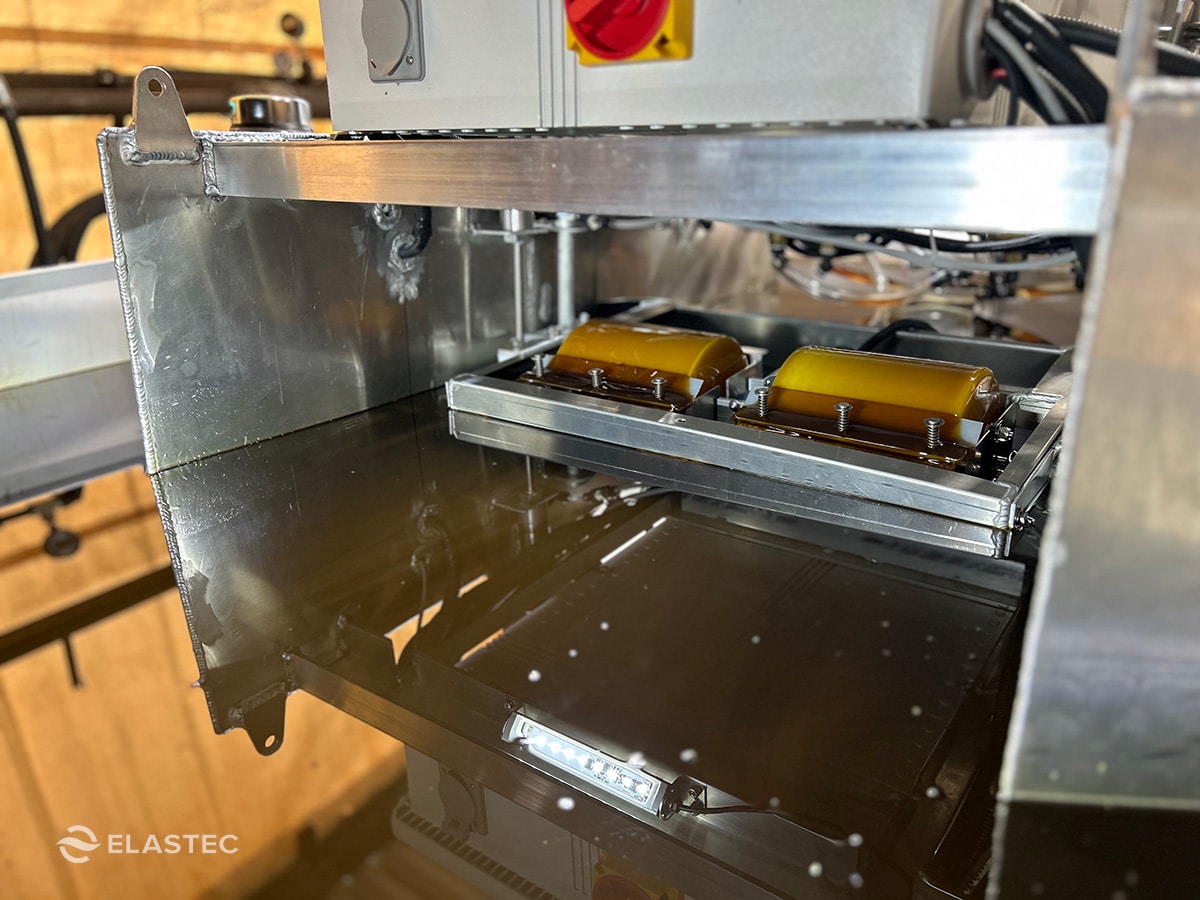

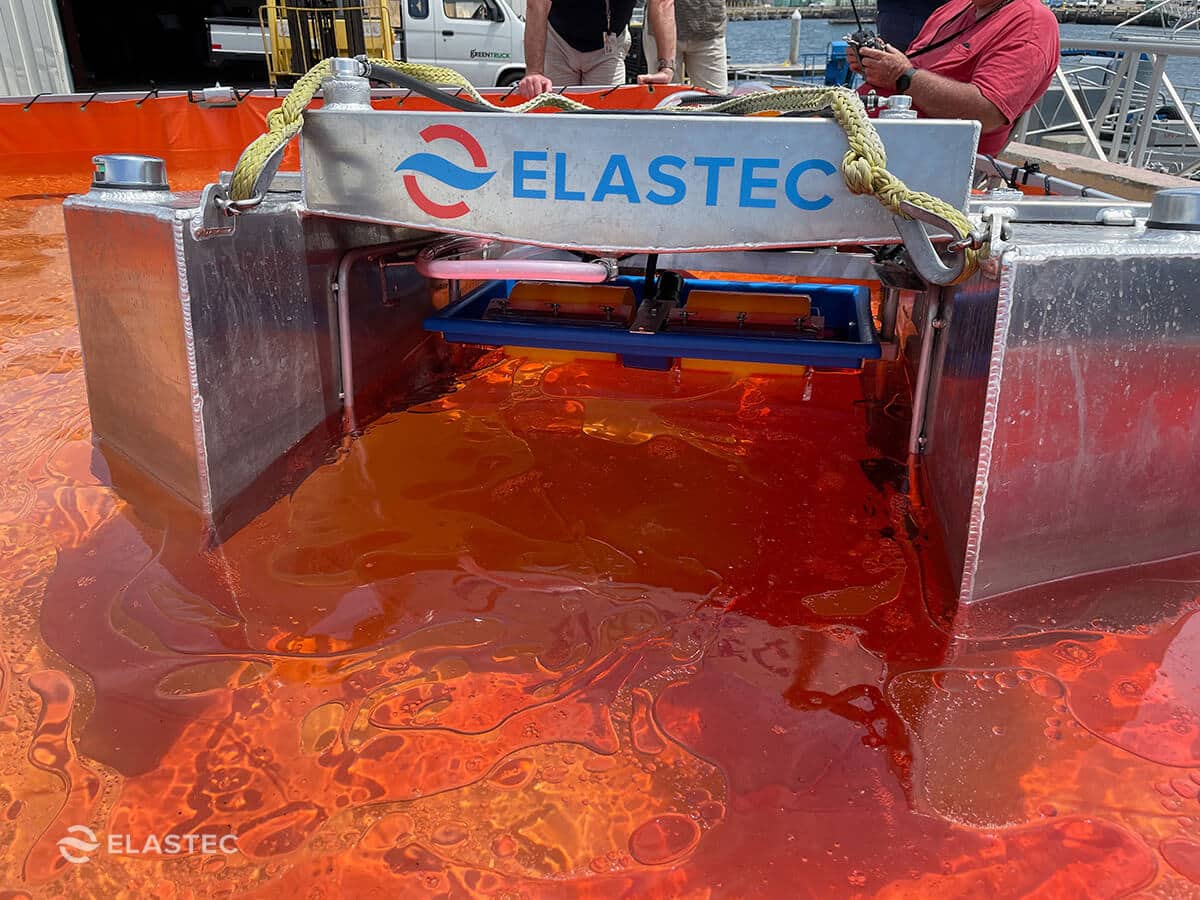

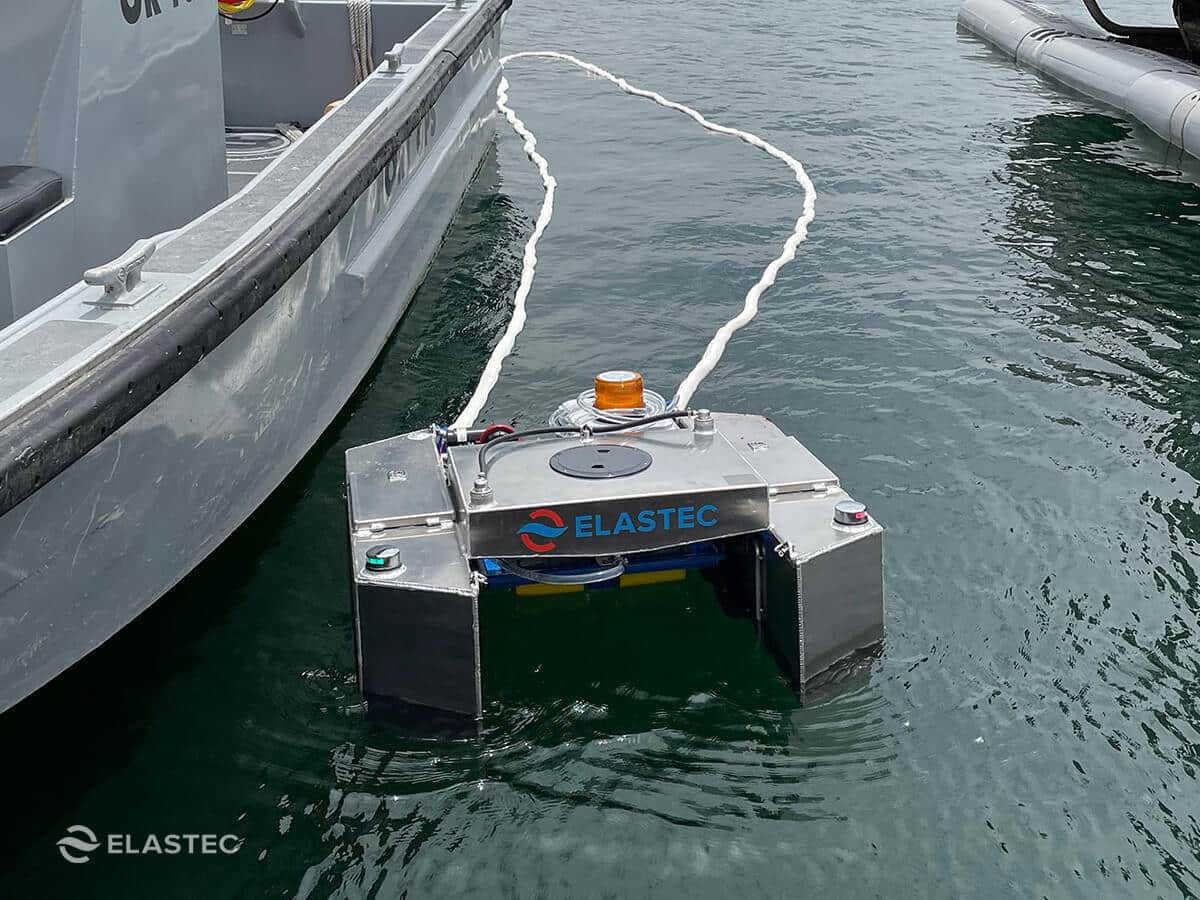

The Elastec ROV skimmer is a remotely controlled device that is designed to provide an effective method of oil recovery from a variety of situations. It can be maneuvered into spaces where a it would be difficult to deploy a traditional fixed oil skimmer. The patented drums rotate on the surface of the water collecting oil as they turn. The wipers remove the oil from the drums into the skimmer collection trough. The pump transfers the recovered oil from the skimmer trough and deposits it in the oil recovery tank. Once full, the system can be driven back to shore to discharge the collected oil into a larger container for reuse or disposal.
ROV Skimmer Specifications
| Dimensions: | 48 x 48 x 30 inches / 1.2 x 1.2 x 0.7m (approx.) |
| Empty Weight: | 230 lbs. / 104 kg |
| Full Weight: | 300 lbs. / 136 kg |
| Oil Recovery Tank Capacity: | 10 gal. / 38 ltrs. |
| Top Speed For Skimmer System With Empty Tank: | 2 knots |
| Maximum Pump Head: | 10 ft. / 3 m |
| Operational Distance: | Over 650 ft. / 200 m away |
- 4 thrusters
- 2 12v sealed lead acid batteries
- Battery tender

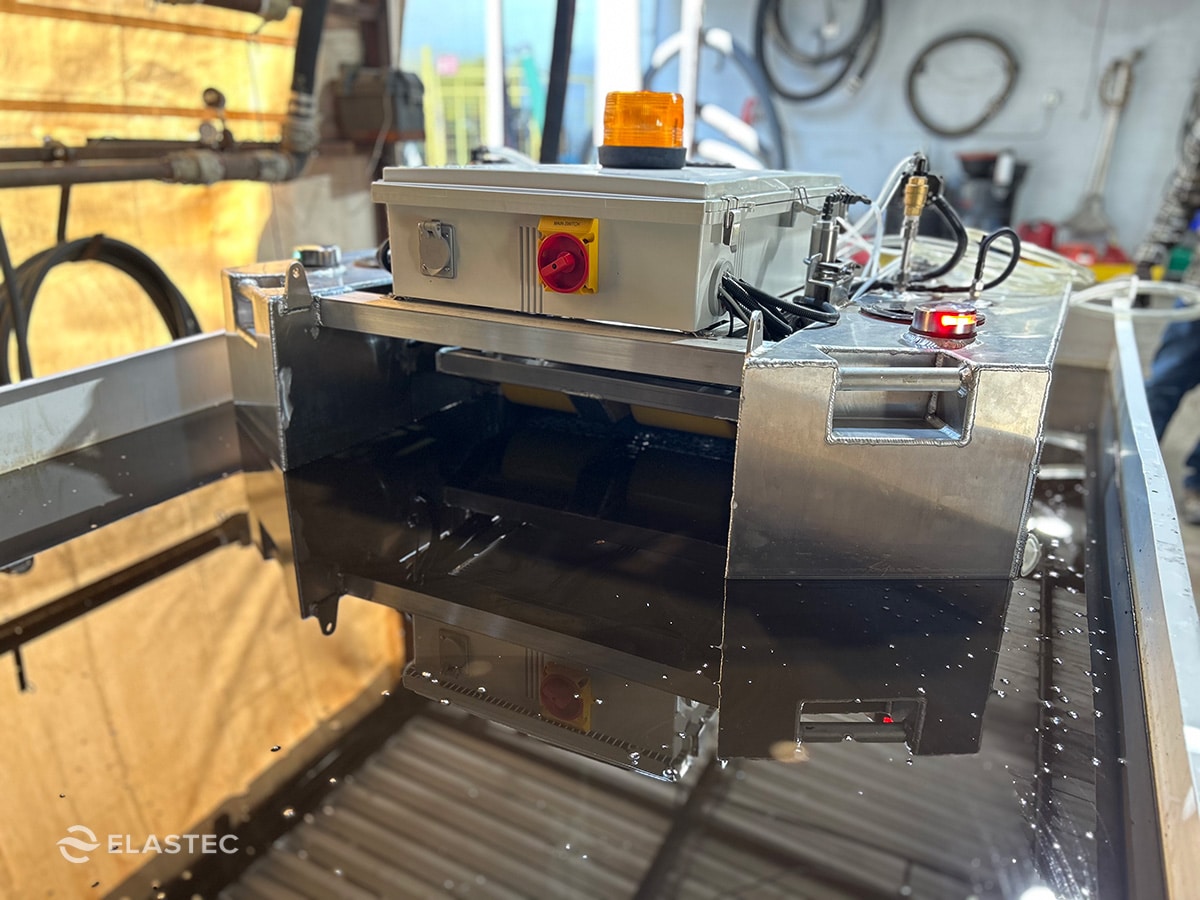

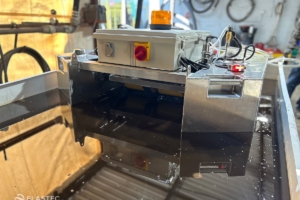

- 3 sealed control boxes. One controlling power distribution, one controlling the pump and skimmer, and
- the final box for solenoids, thrusters and voltage.
- Navigation lights
- Strobe light
- Blue LED indication lights
