AIRMAX INFLATABLE OIL CONTAINMENT BOOM
AirMax is a versatile, inflatable oil containment boom, manufactured from high-quality Urethane fabric. The AirMax range of containment booms are designed for compact storage and quick deployment. The high visibility orange fabric greatly assists mariners and vessel operators to avoid a potential navigational hazard. As an added safety feature, the hot galvanized steel ballast chain is enclosed in a reinforced fabric pocket to prevent entanglements and pinch points for operators. This chain also acts as a tension member for added strength and resistance of towing forces. American Marine, a division of Elastec, has been manufacturing quality floating boom and barrier products since 1967. Fill out our questionnaire and tell us about your project.

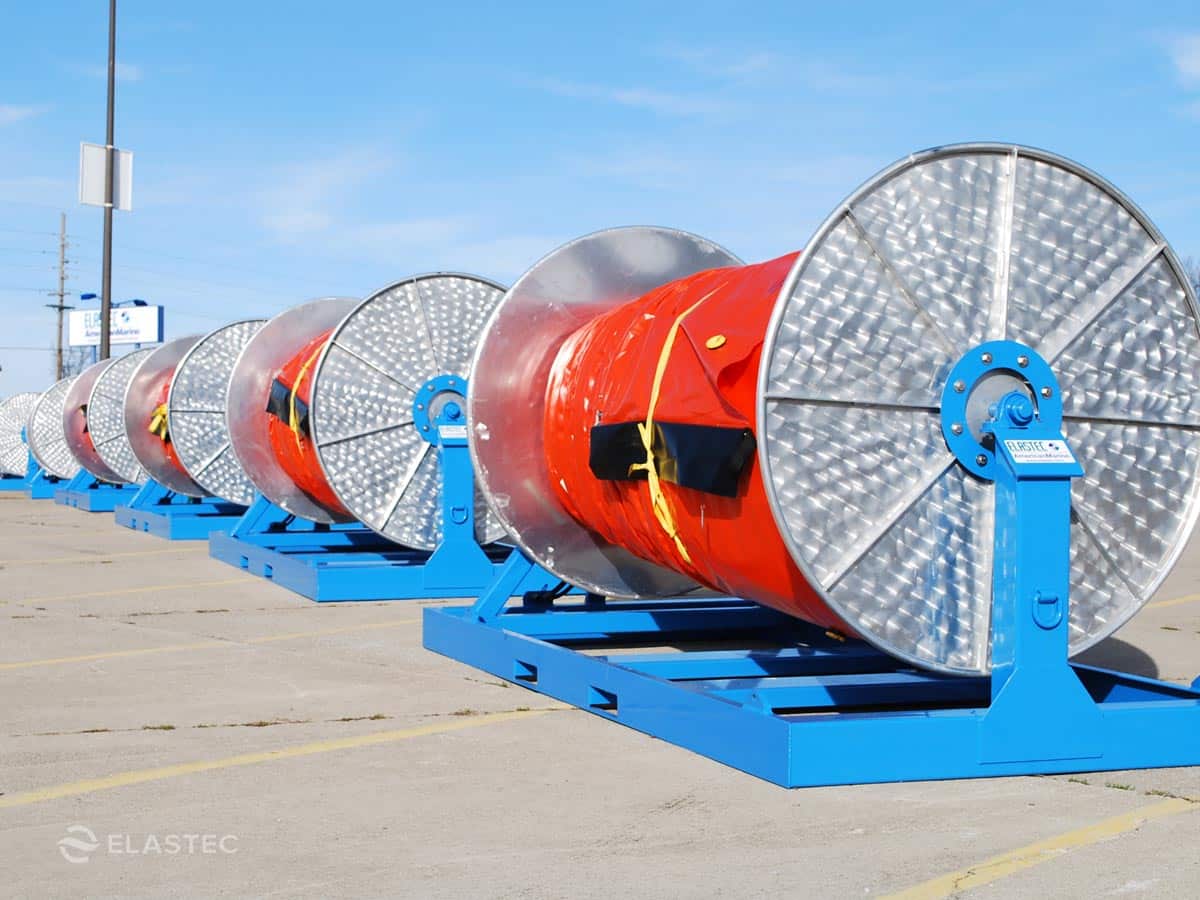

Elastec offers a full range of boom reels that can be delivered for all sizes of AirMax boom. These reels are available mounted on trailers or in storage containers. We also offer a full range of boom accessories including blowers, bridles, anchor sets, boom lights, choice of connectors, and tidal compensators. AirMax is available in six sizes. The size required will depend on the sea conditions or water body where the boom will be deployed.
As standard, the AirMax range of booms are supplied in manageable section lengths. These shorter sections allow for a greater flexibility of deployment configurations. If one part of the boom is damaged, only a small section is removed for service. As an option, AirMax can be fitted with foam panels that act as reserve buoyancy in the event of a puncture.
AirMax has individually filled air chambers, and each chamber is equipped with a valve. This valve has a built-in non-return valve.

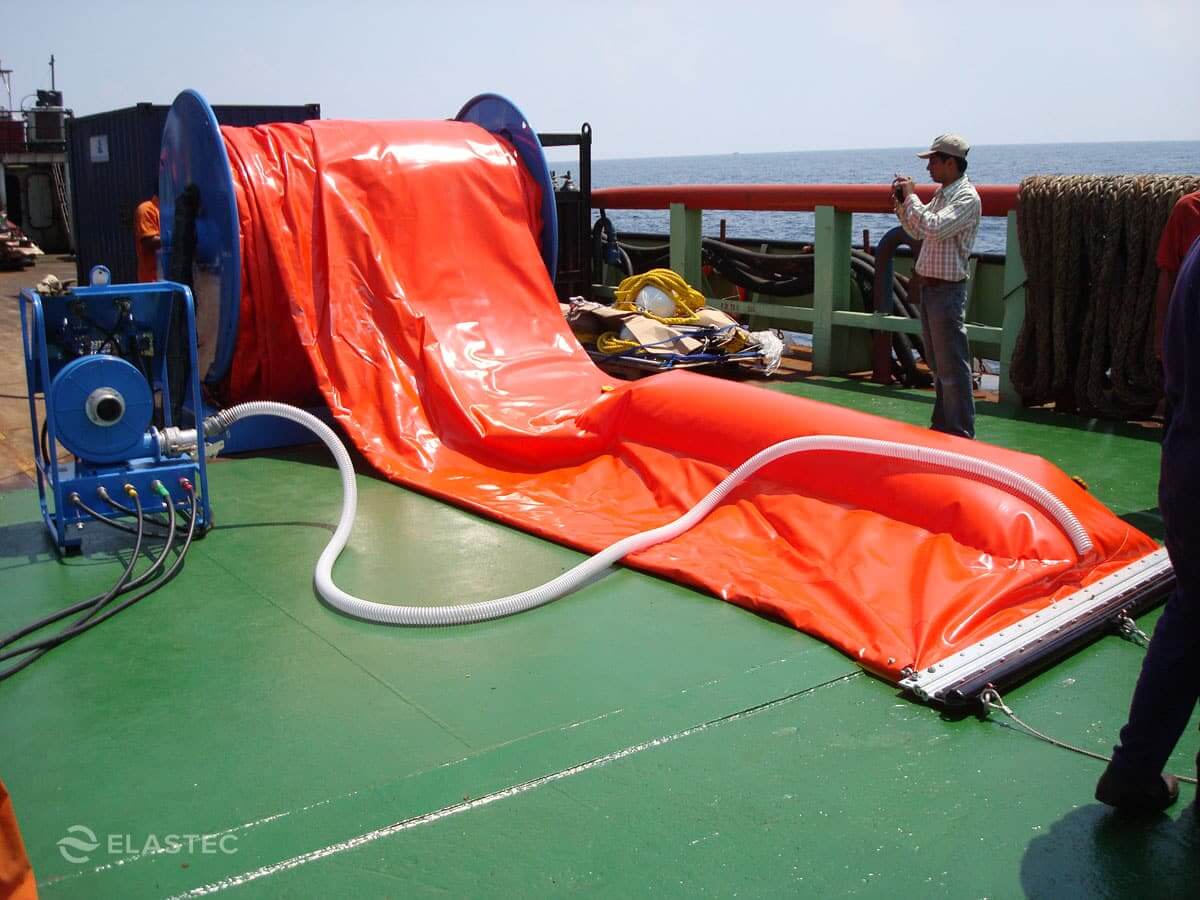

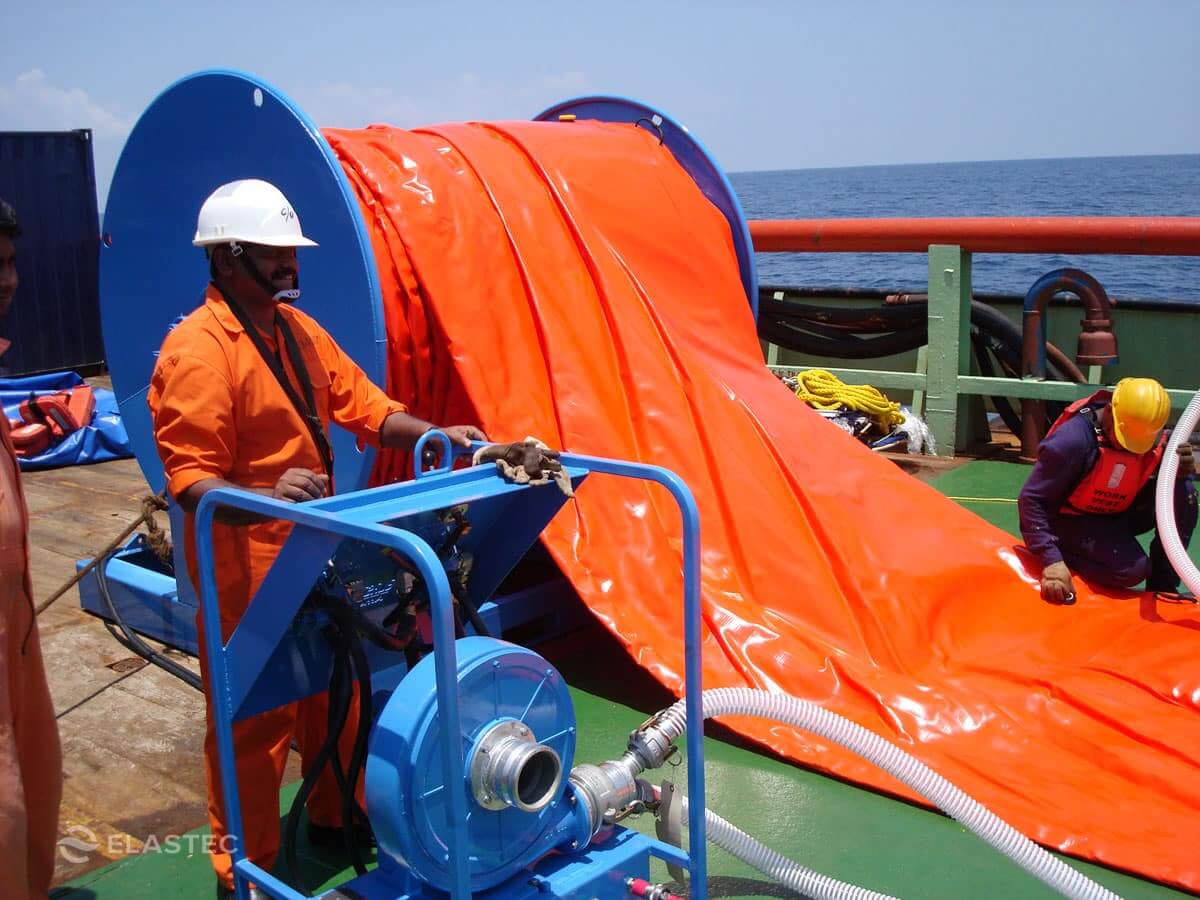

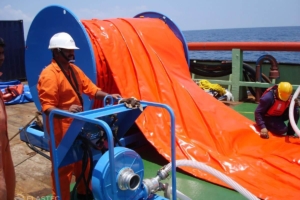

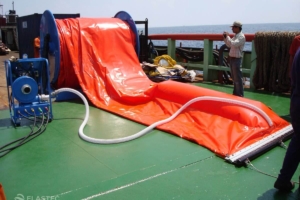

High capacity air blowers are available to rapidly fill the individual air chambers as the boom is deployed into the water.
Contact us to discuss your next project.

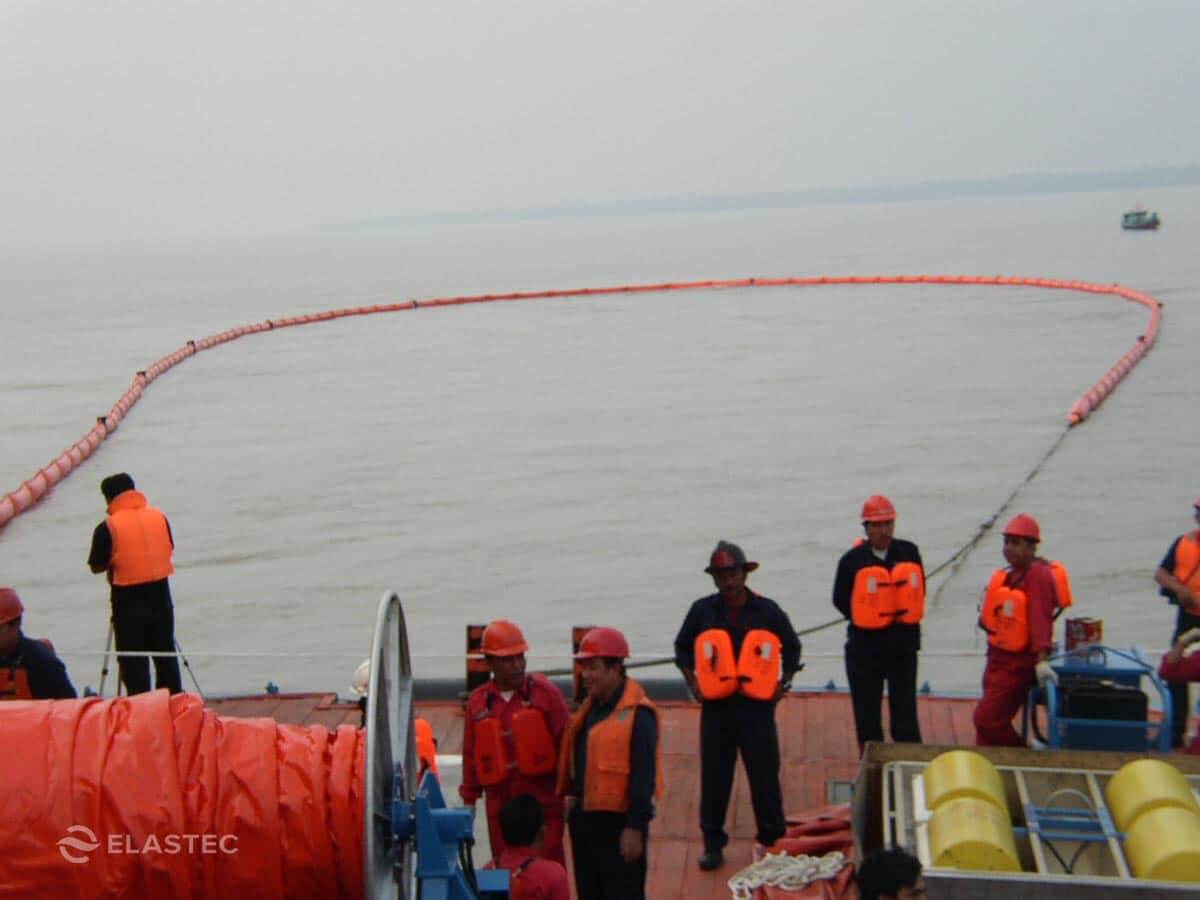

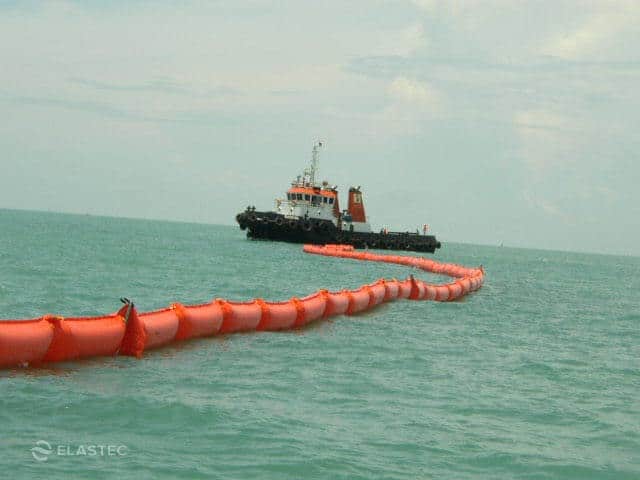

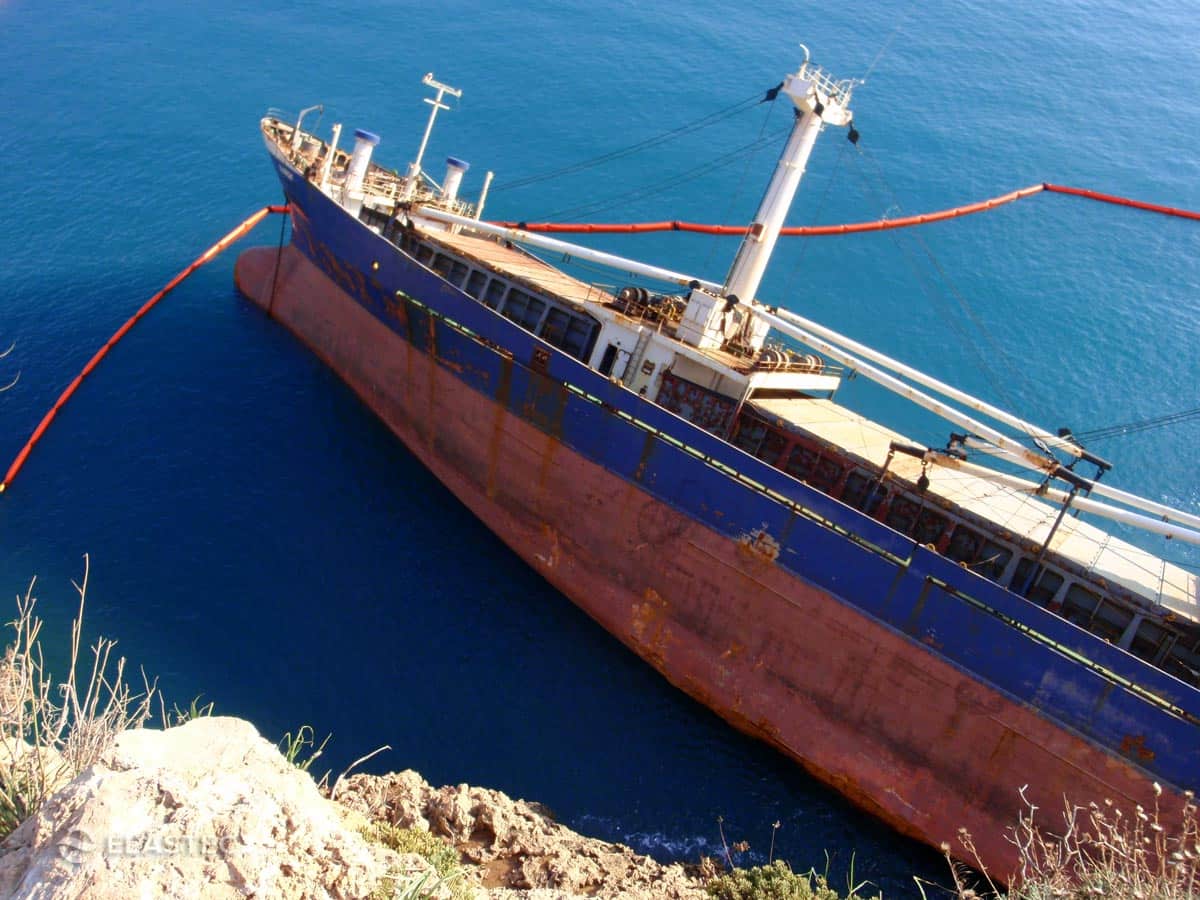

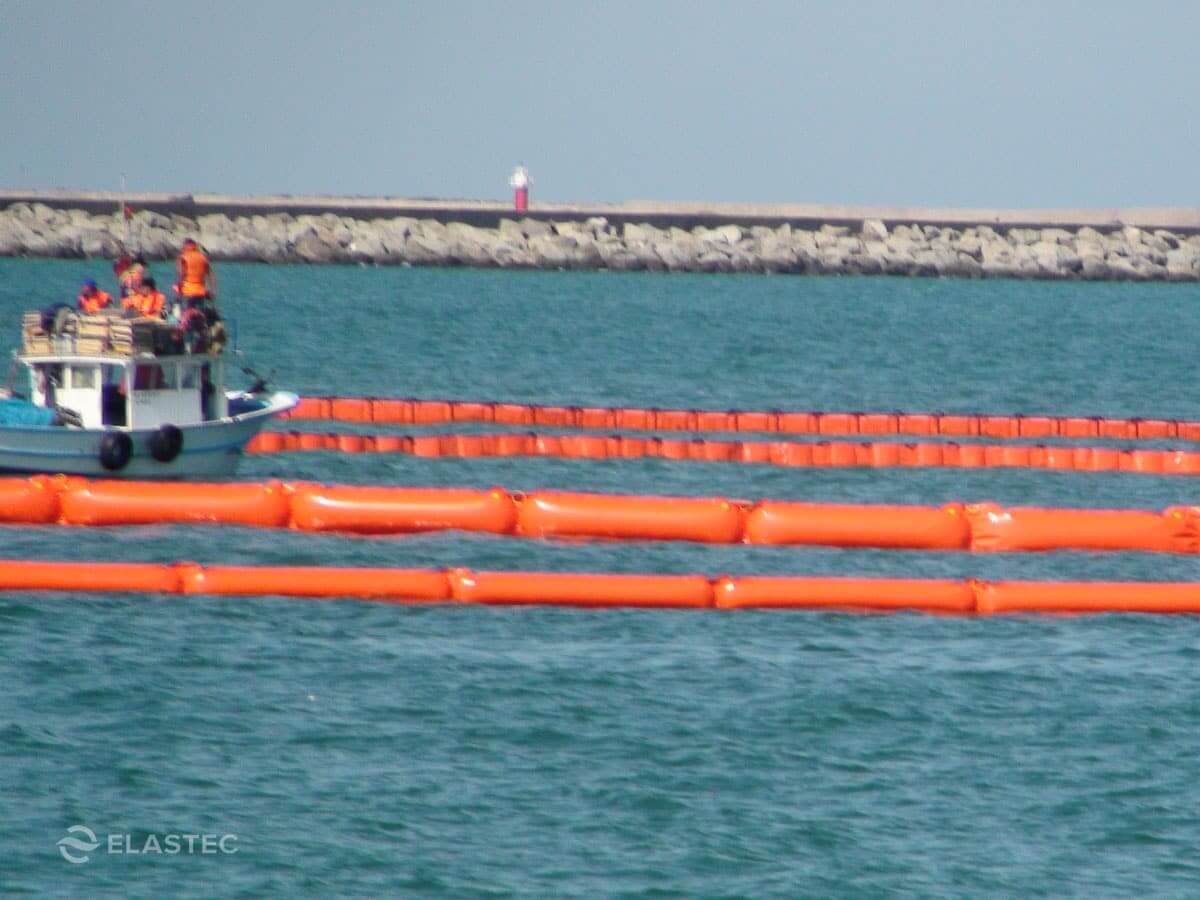

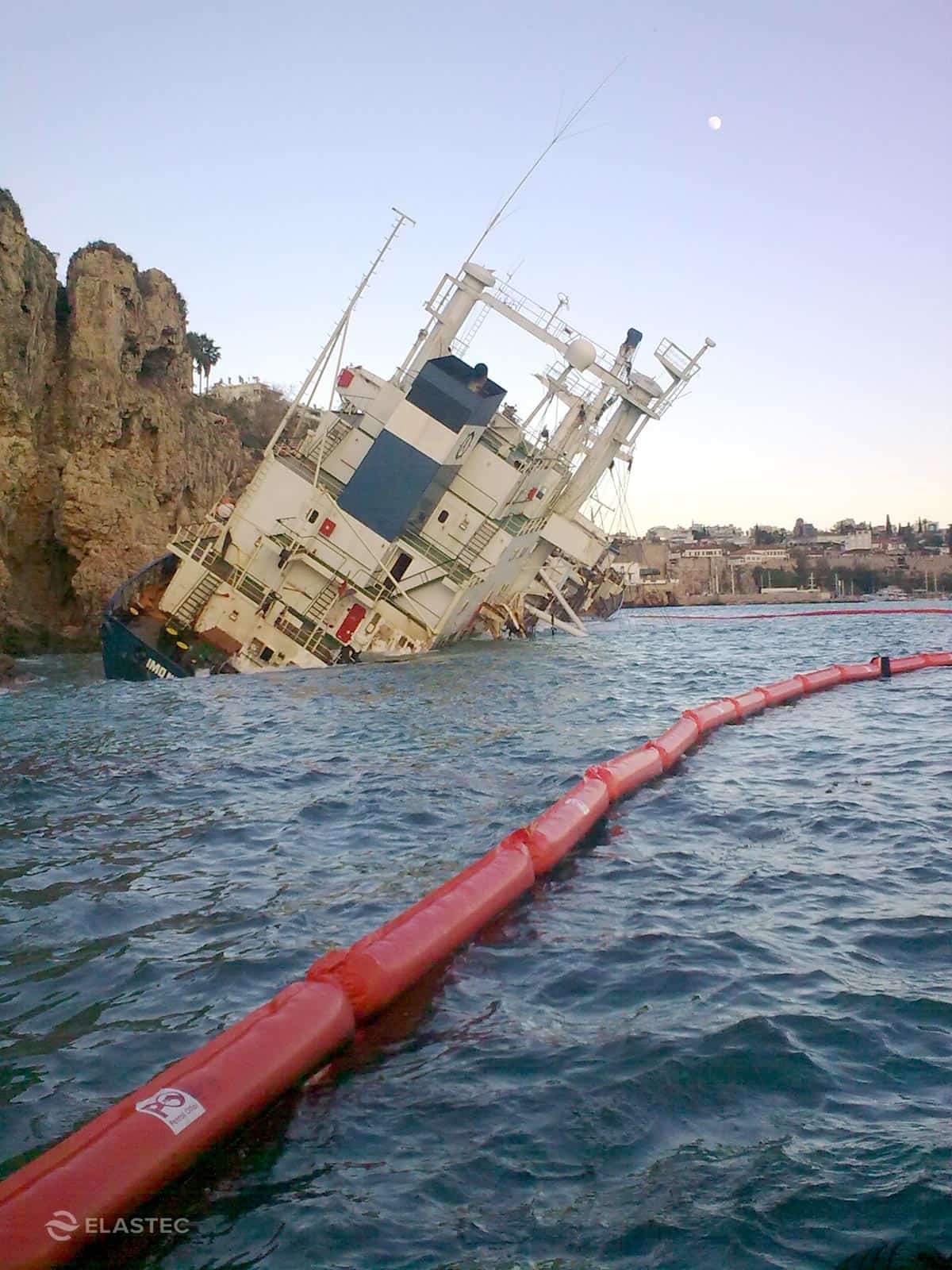

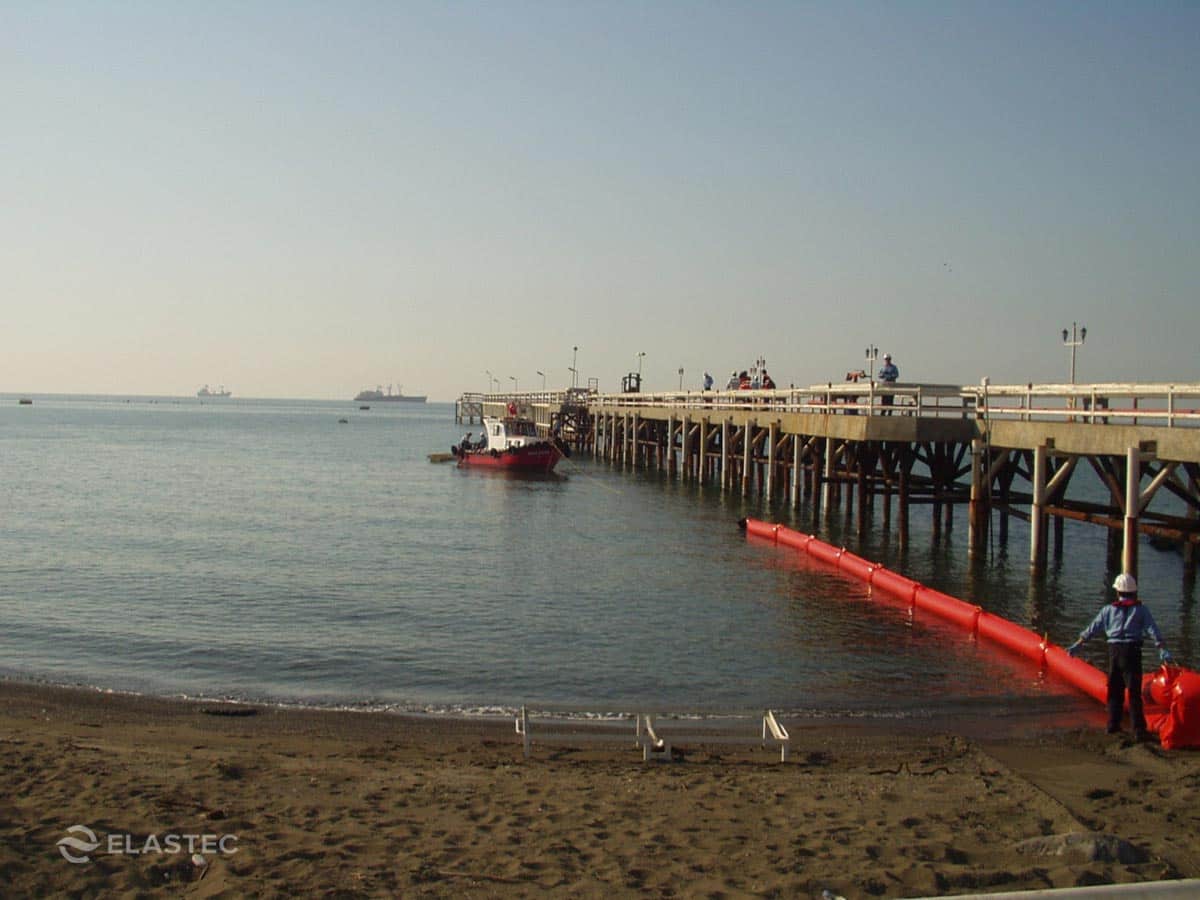

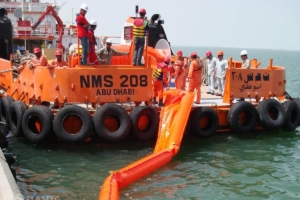

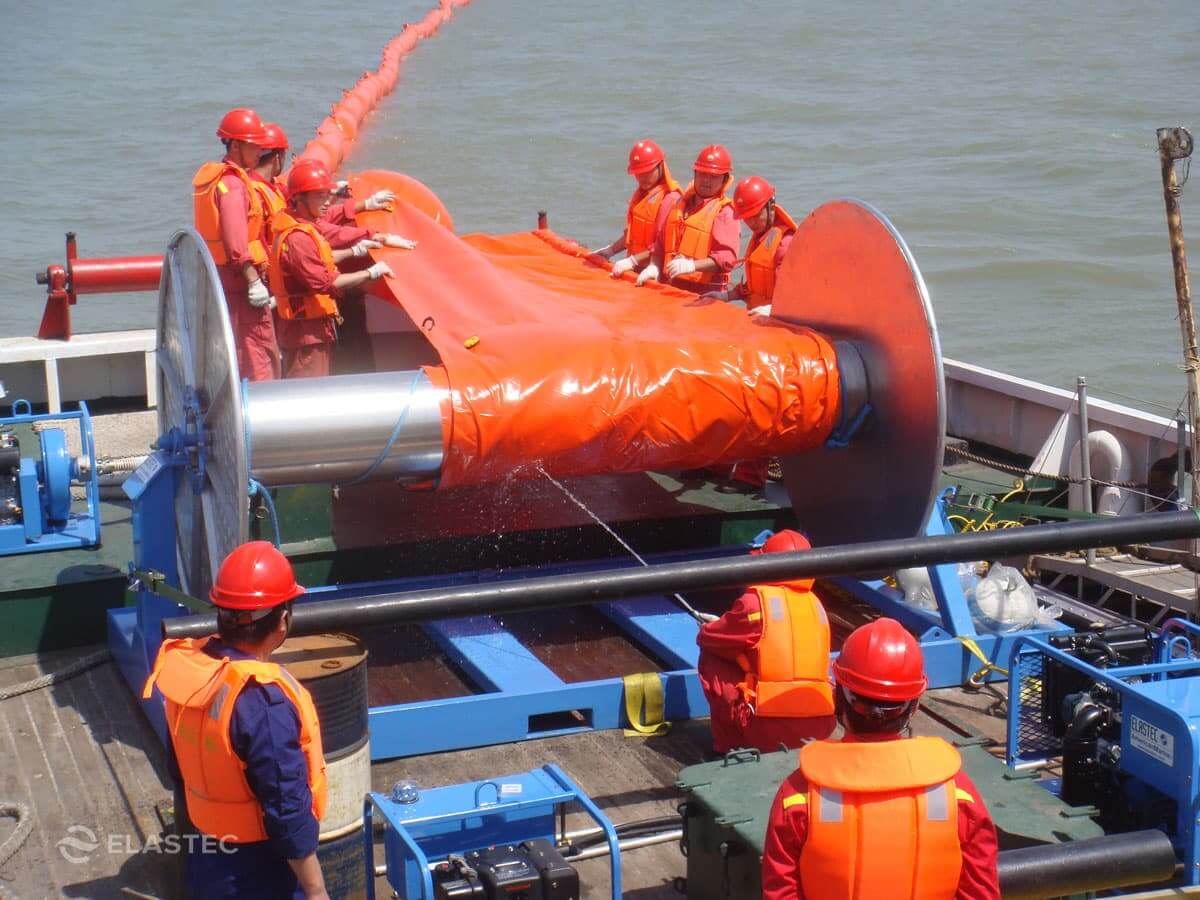

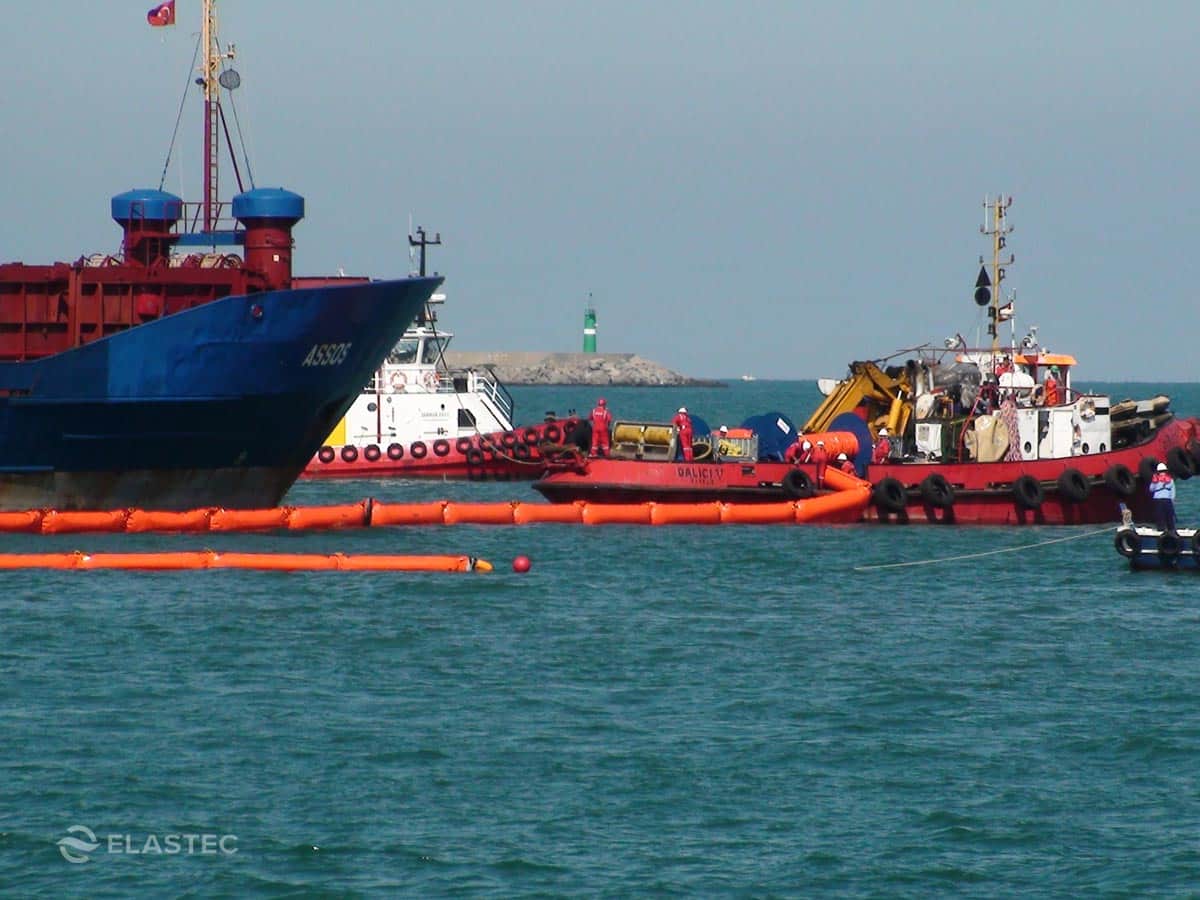

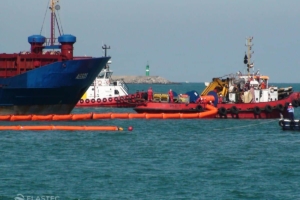

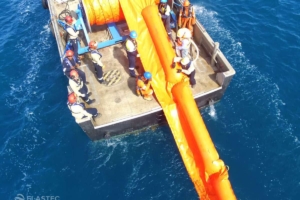

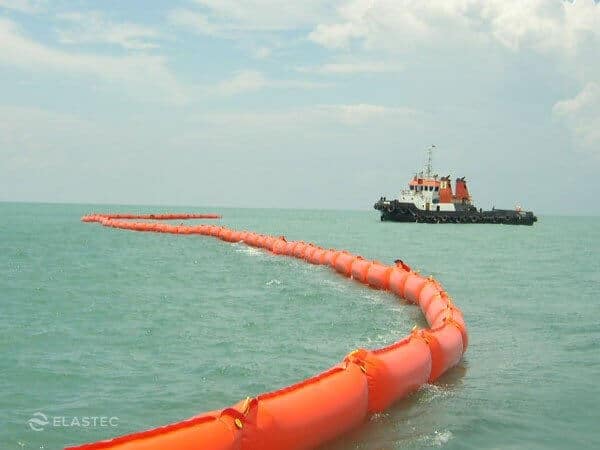

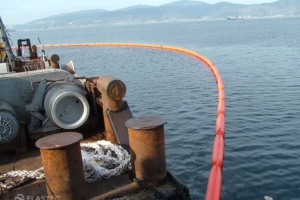

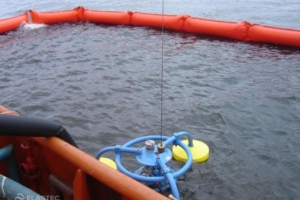

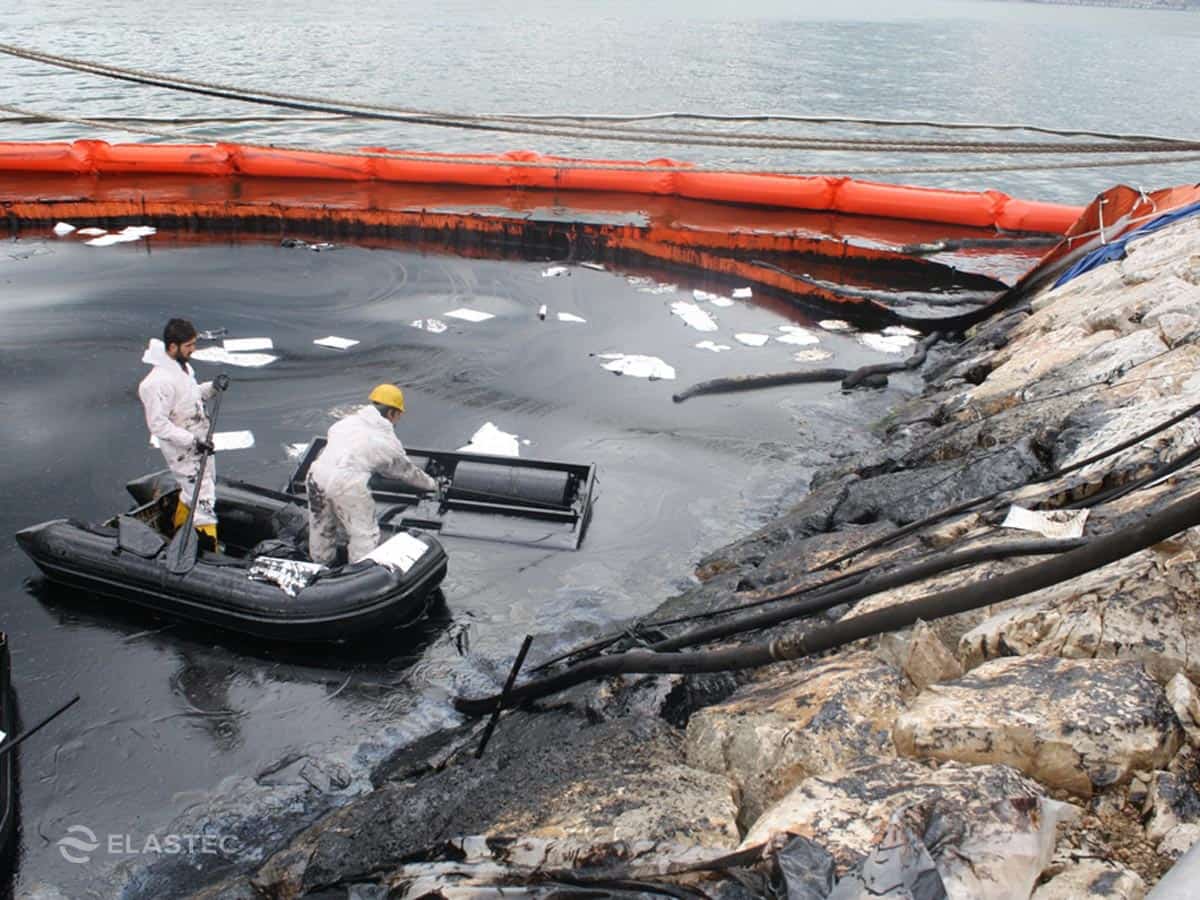

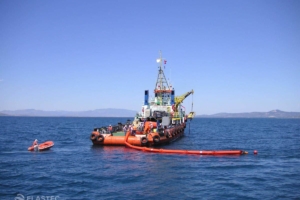

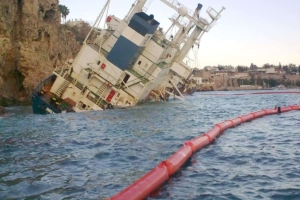

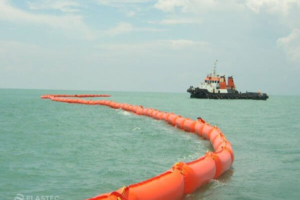

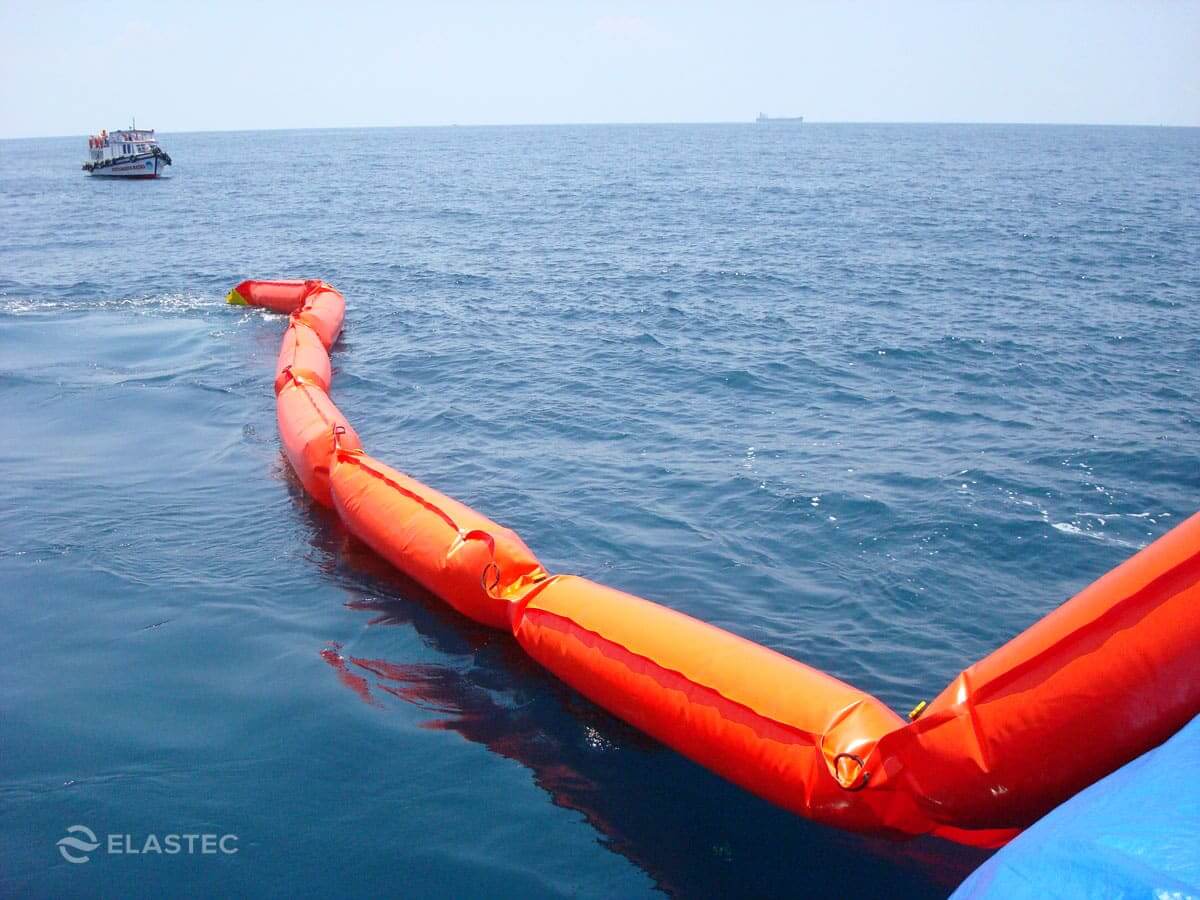

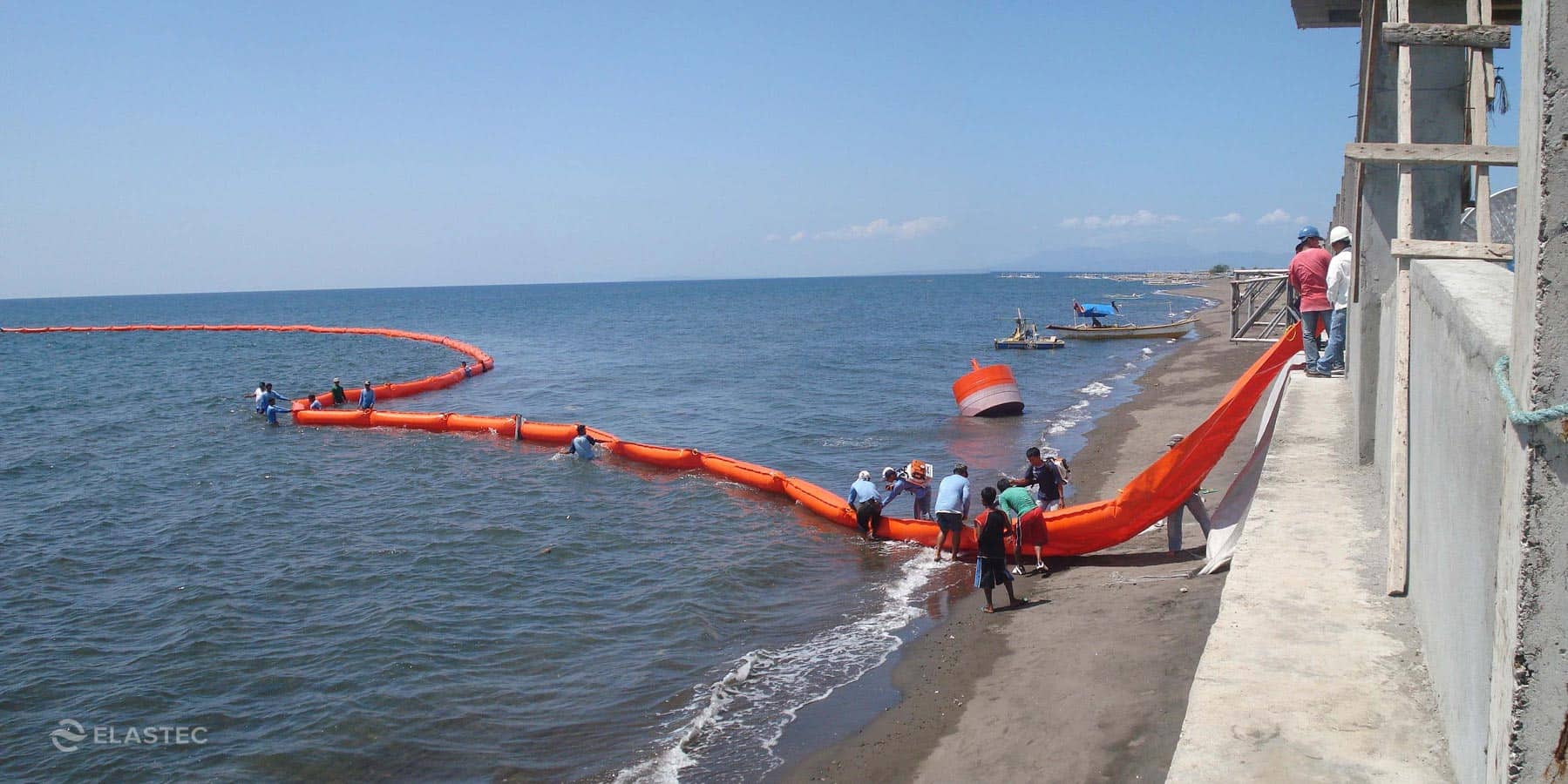

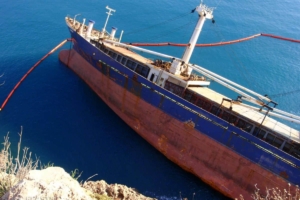

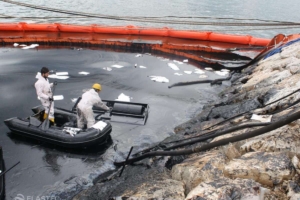

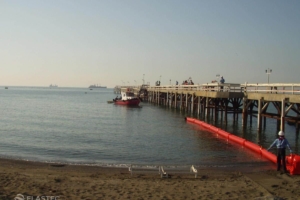

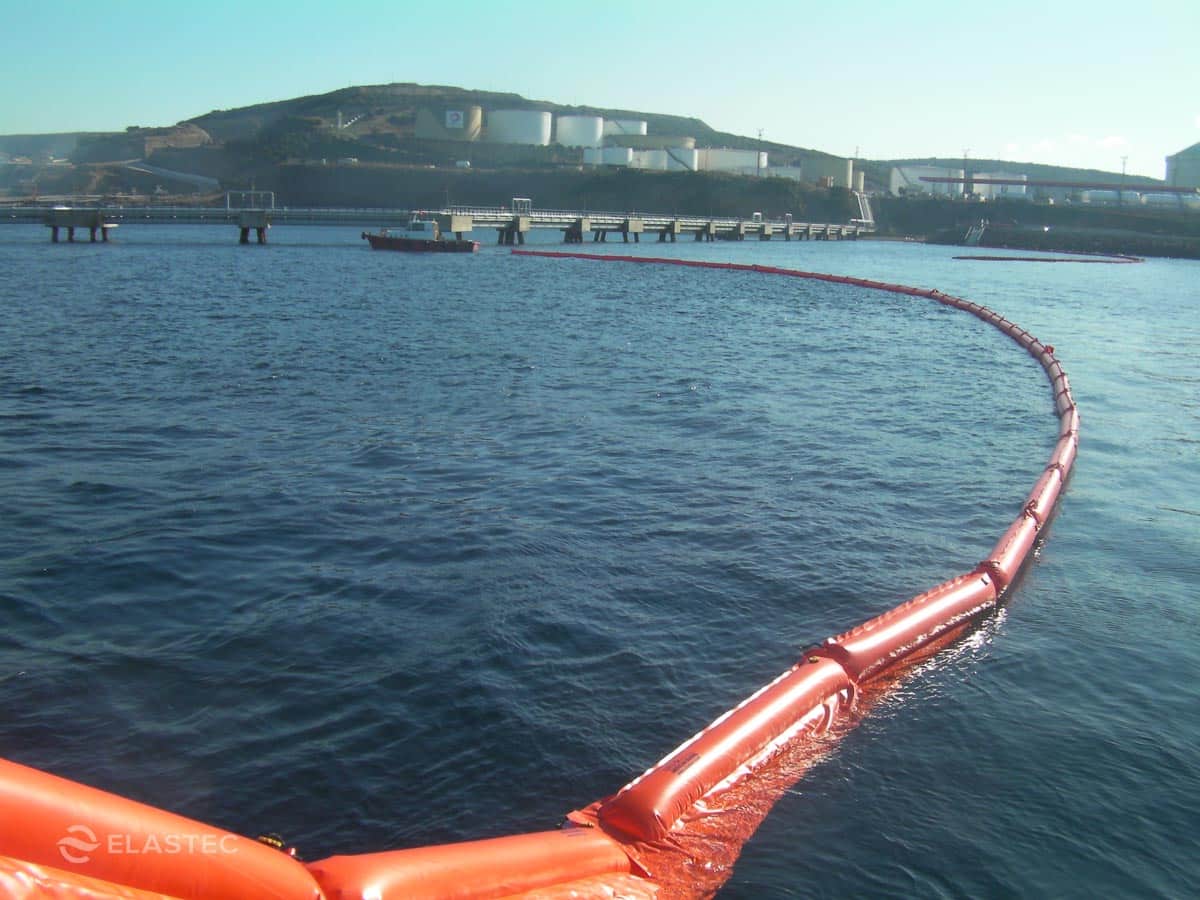

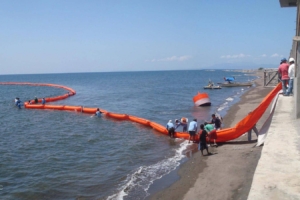

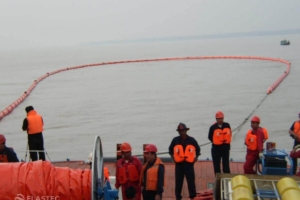

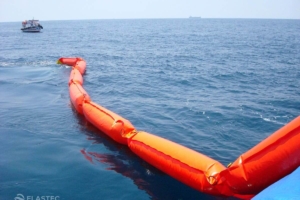

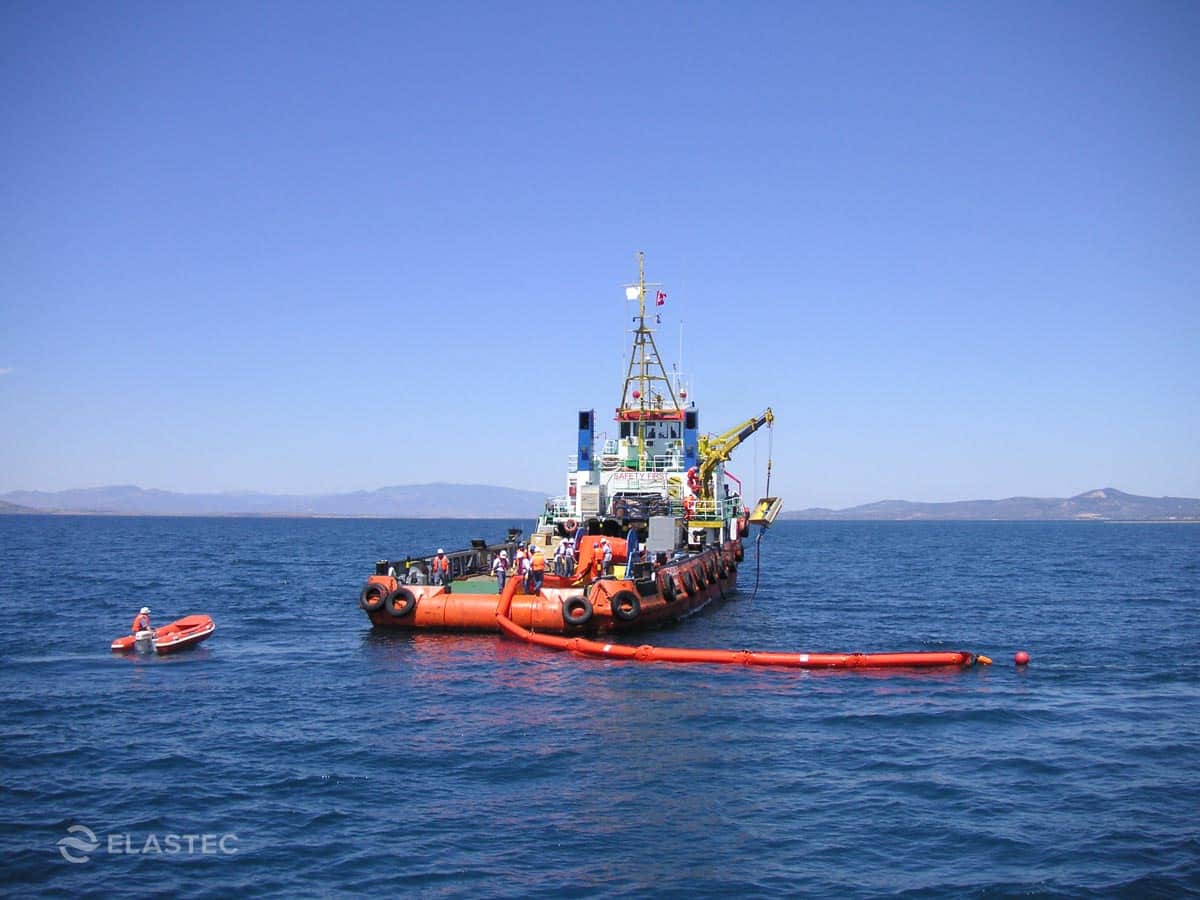

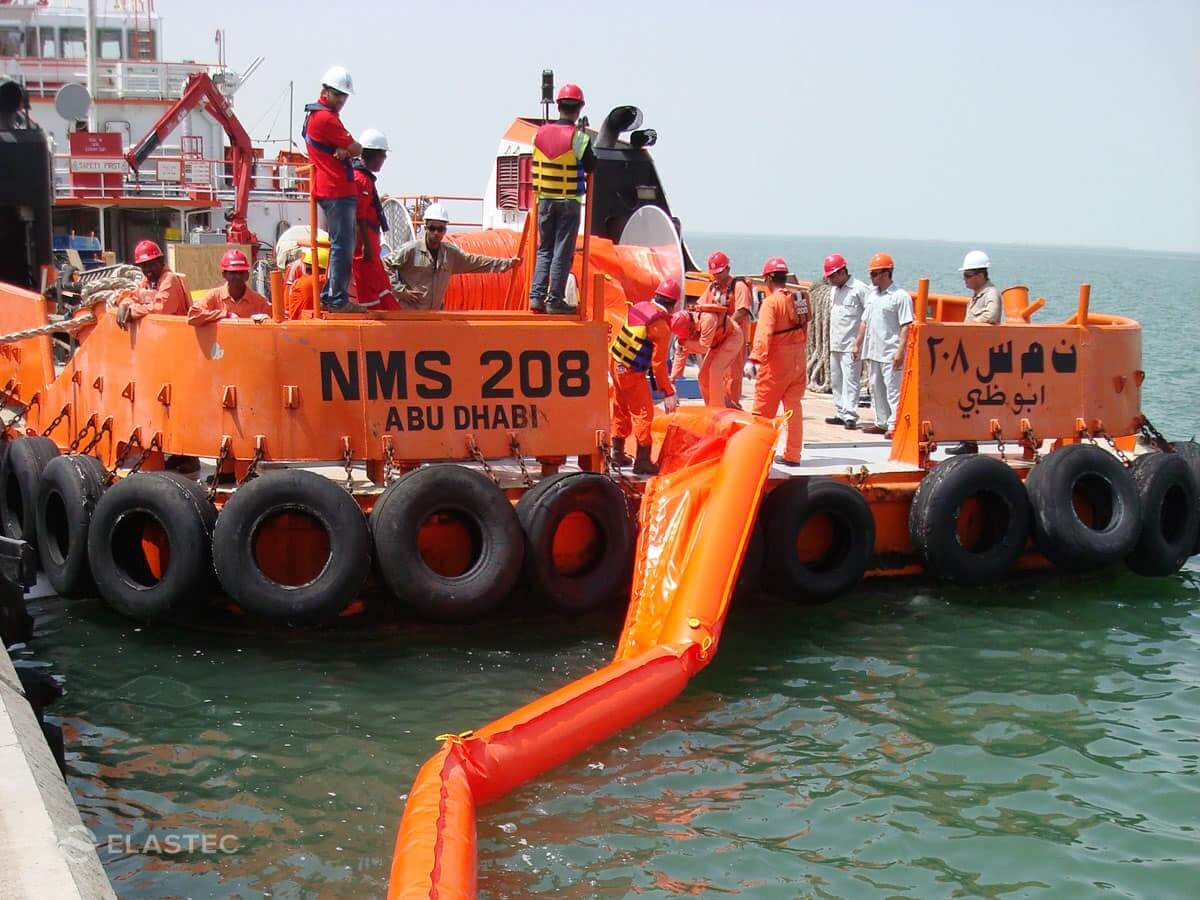

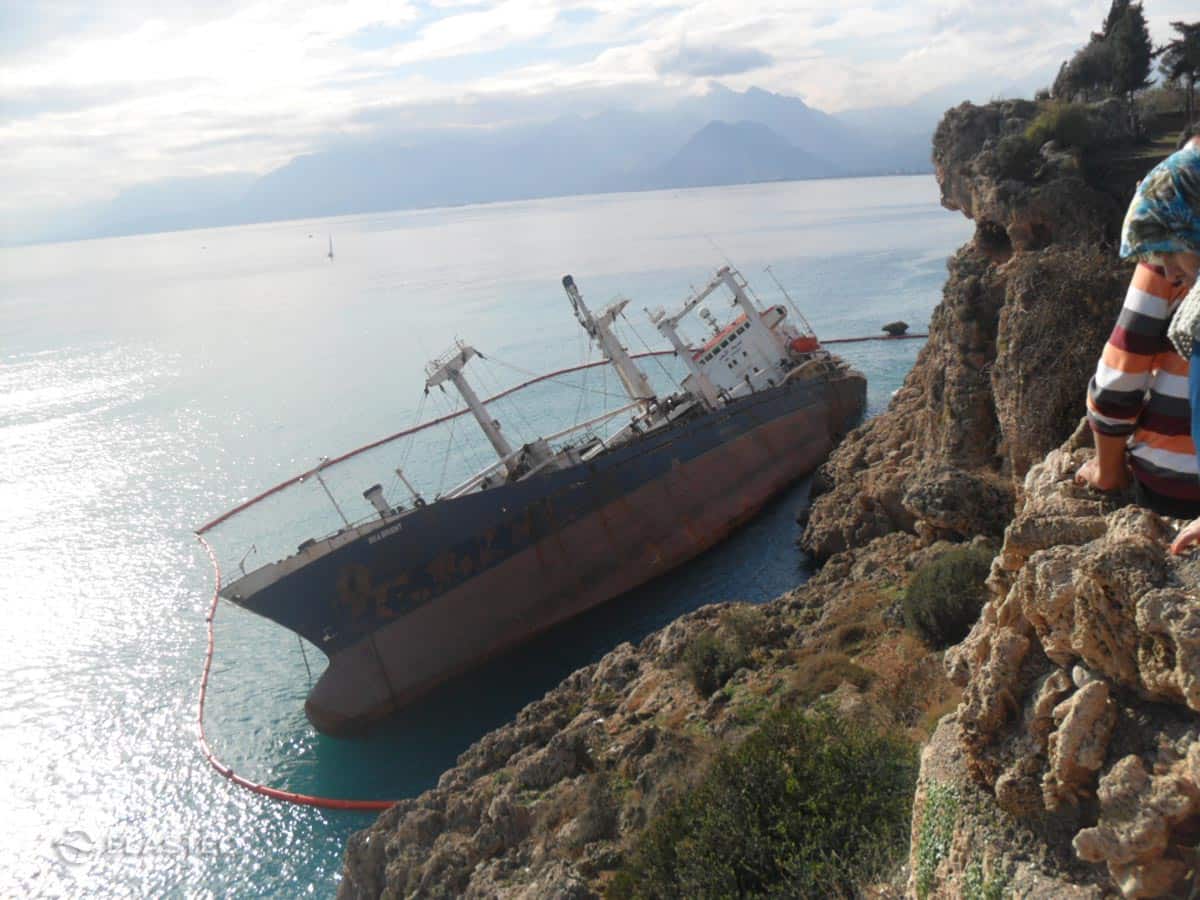

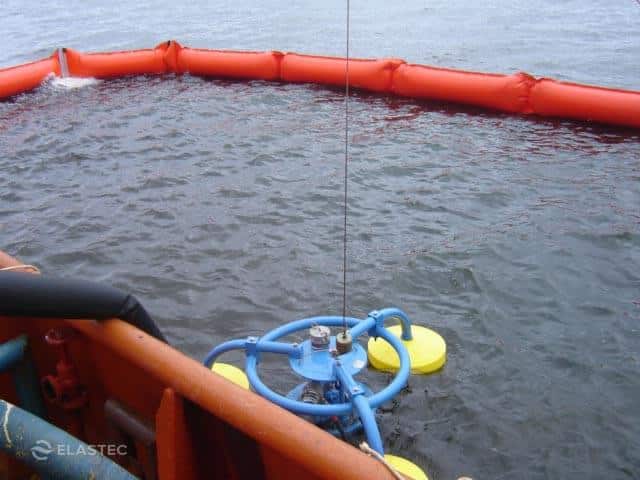

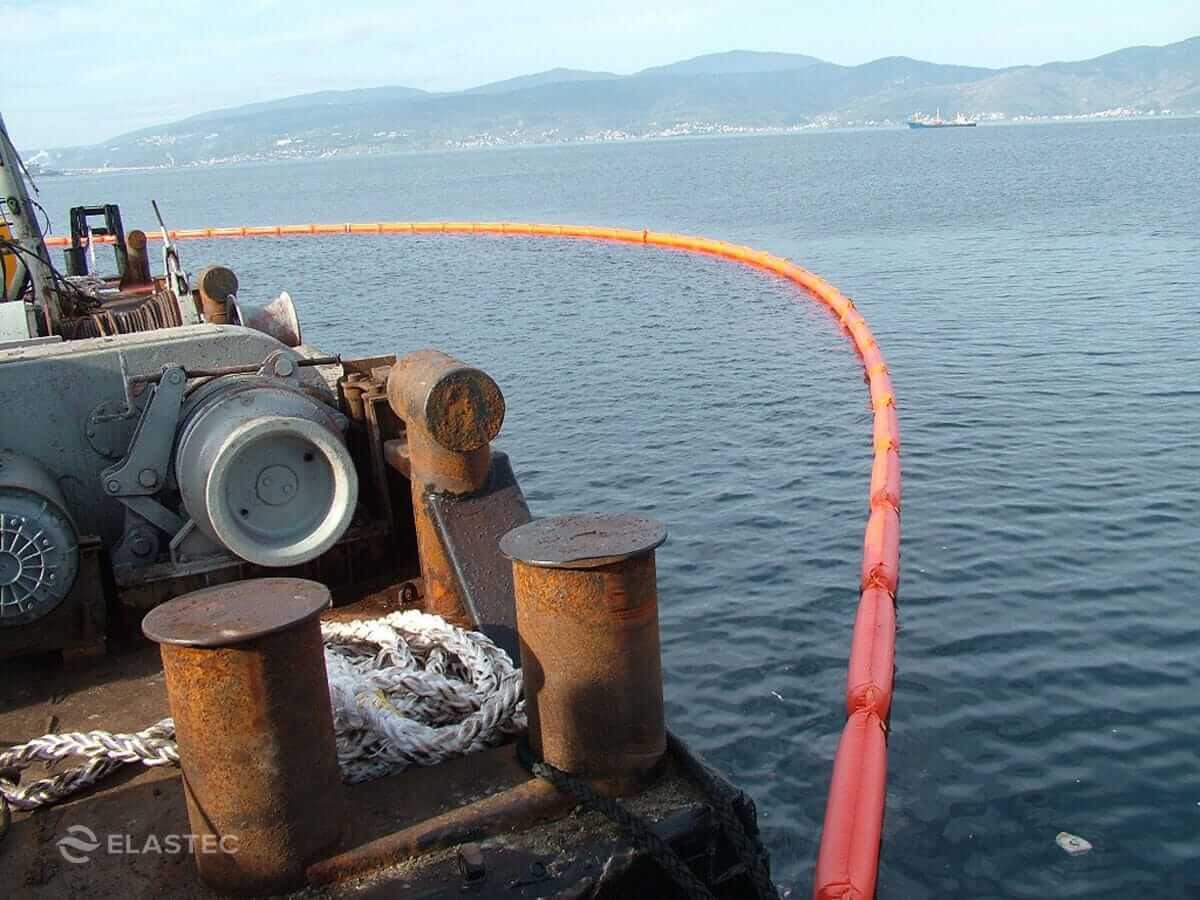

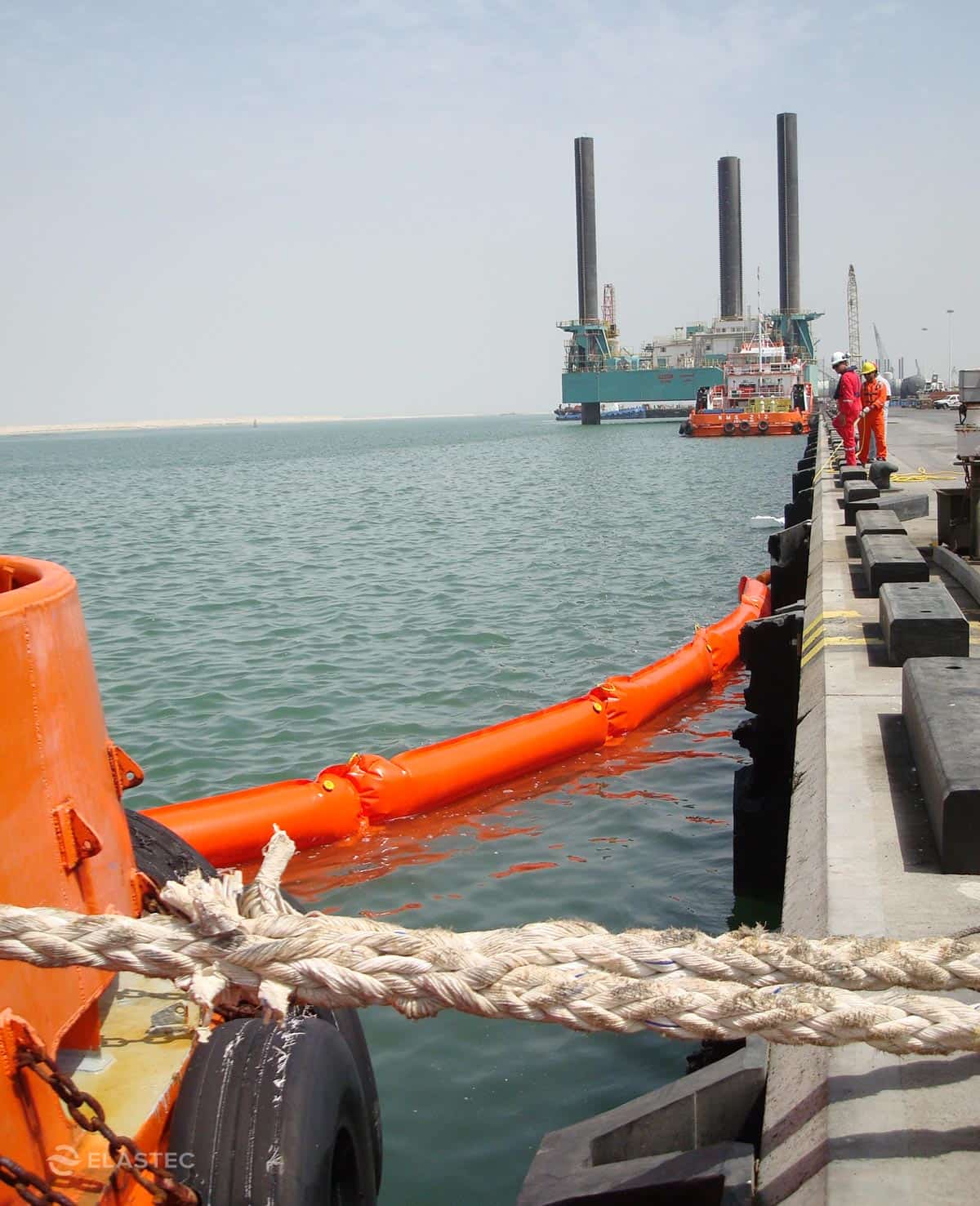

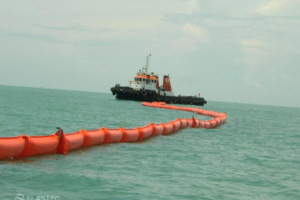

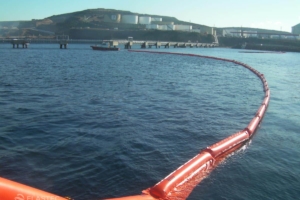

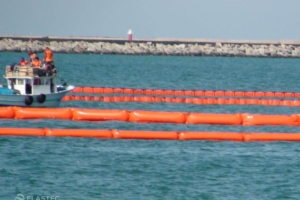

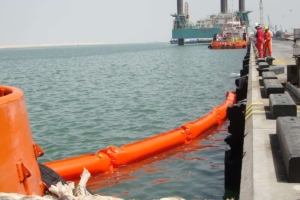

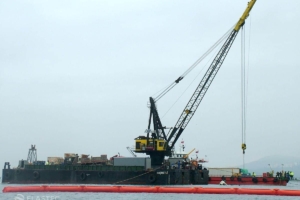

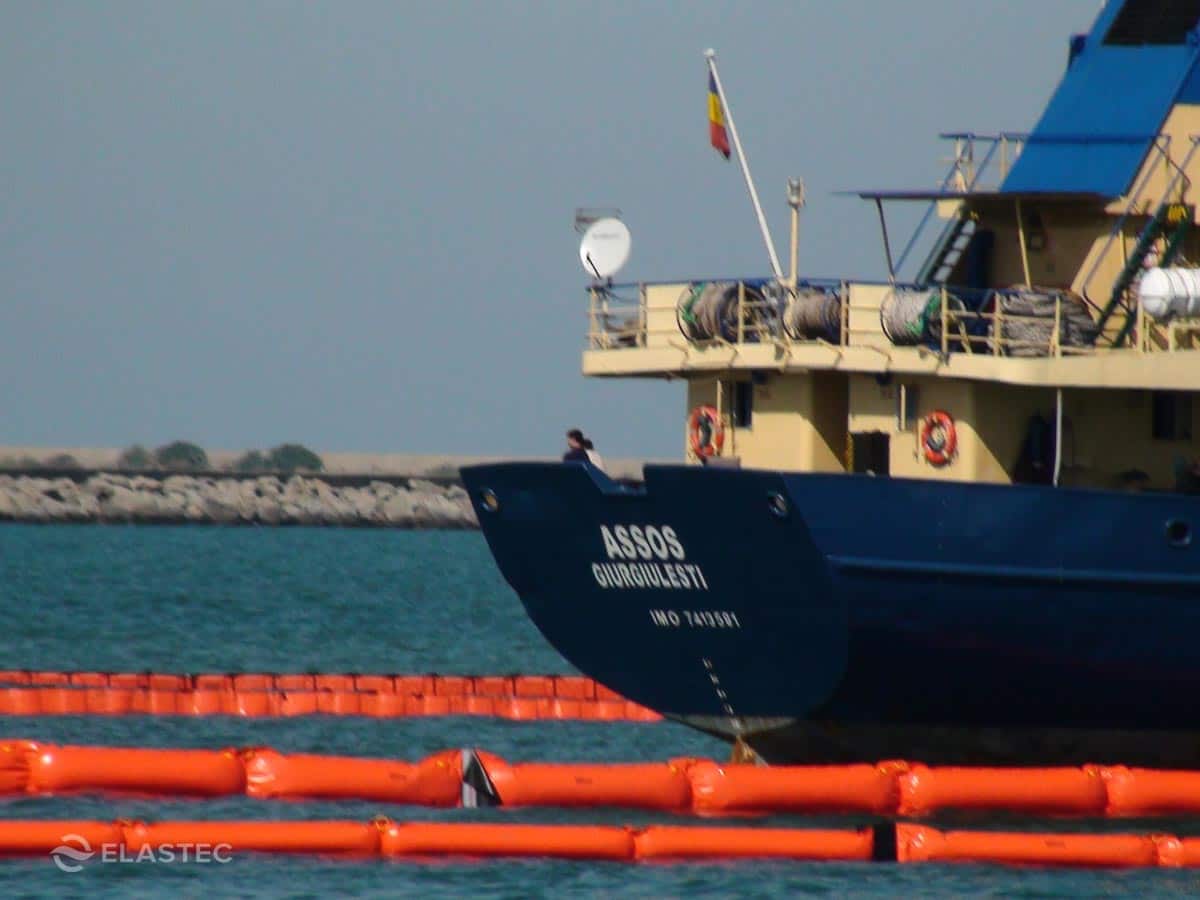

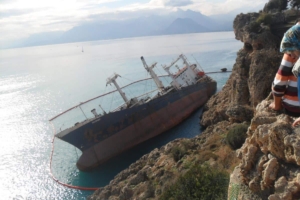

AIRMAX PHOTOS
AirMax Boom Specification Chart
| Model | Deep Sea | Open Water | Offshore | Nearshore | Harbor | River |
|---|---|---|---|---|---|---|
| Connector Height | 75 in / 1.9 m | 57 in / 1.44 m | 50 in / 1.27 m | 38 in / 0.96 m | 24 in / 0.61 m | 17.5 in / 0.44 m |
| Operation Height | 64 in / 1.63 m | 48 in / 1.22 m | 43 in / 1.1 m | 32 in / 0.81 m | 22 in / 0.56 m | 16 in / 0.40 m |
| Freeboard | 24 in / 0.61 m | 20 in / 0.51 m | 18 in / 0.46 m | 14 in / 0.35 m | 8 in / 0.2 m | 8 in / 0.20 m |
| Draft | 40 in / 1.01 m | 28 in / 0.71 m | 25 in / 0.64 m | 18 in / 0.46 m | 14 in / 0.35 m | 8 in / 0.20 m |
| Air Chamber Length | 10 ft / 3 m | 10 ft / 3 m | 10 ft / 3 m | 10 ft / 3 m | 10 ft / 3 m | 50 ft / 15 m |
| Section Length | 100 ft / 30 m (other on request) | 100 ft / 30 m (other on request) | 100 ft / 30 m (other on request) | 100 ft / 30 m (other on request) | 100 ft / 30 m (other on request) | 50 ft / 15 m |
| Bottom Tensions | 1/2 in / 12.7 mm Galv. Chain | 1/2 in / 12.7 mm Galv. Chain | 1/2 in / 12.7 mm Galv. Chain | 3/8 in / 9.5 mm Galv. Chain | 5/16 in / 8 mm Galv. Chain | 5/16 in / 8 mm Galv. Chain |
| Weight 28 oz | 4.9 lbs/ft - 7.3 kg/m | 4.45 lbs/ft - 6.6 kg/m | 4.25 lbs/ft - 4.1 kg/m | 2.75 lbs/ft - 4.1 kg/m | 1.85 lbs/ft - 2.75 kg/m | 1.56 lbs/ft - 2.30 kg/m |
General Specification

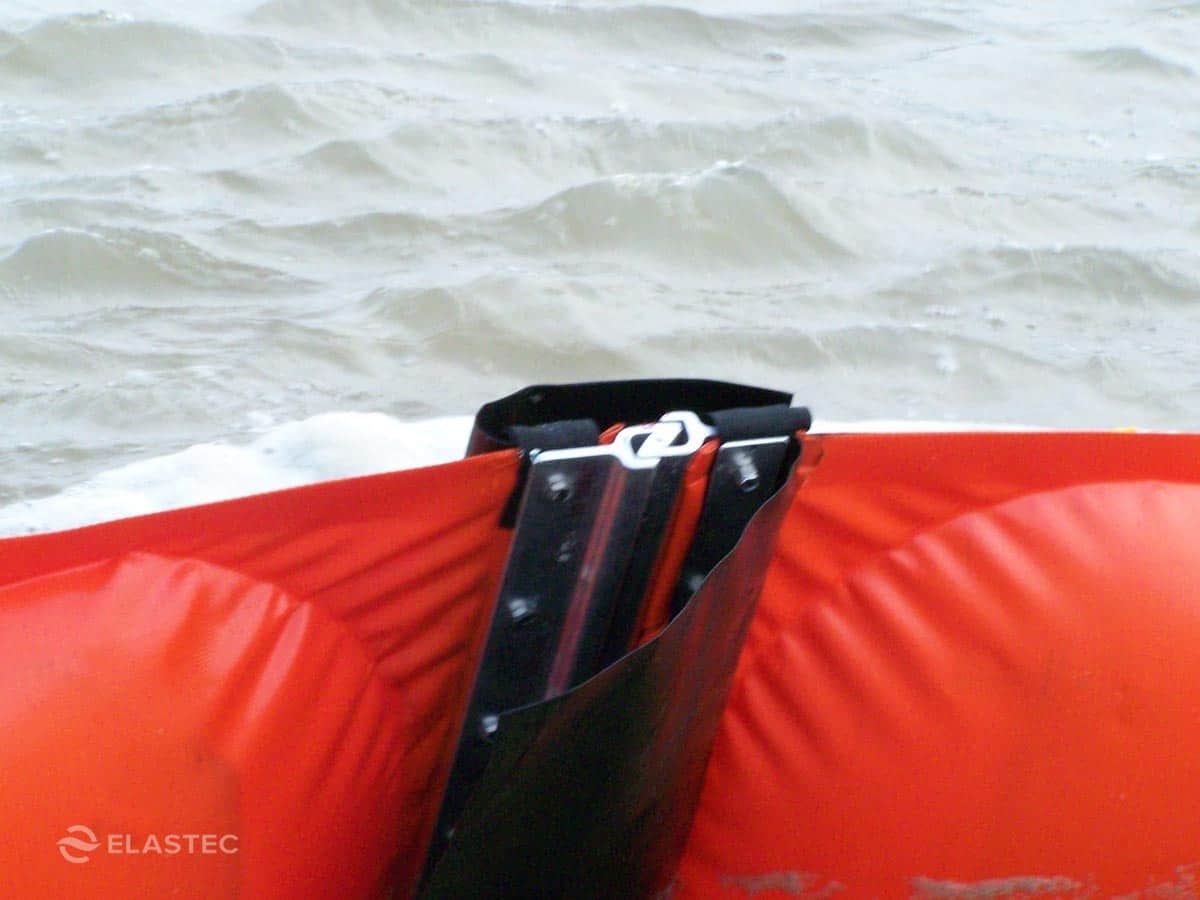

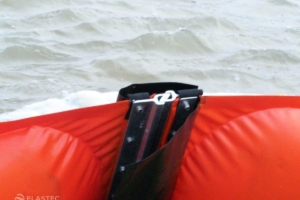

| Connectors | ASTM Universal Slide* |
| Color | High Visibility Safety Orange |
| Deployment Time | Approx. 15 minutes using reels |
| Section Length | 100 ft / 30 m |
| Ballast | Galvanized chain in double layer fabric pocket |
| Fabric | 28 oz / 950 gsm (Optional 36 oz / 1,220 gsm) Urethane (+/-2) |
| Splash Over Prevention | Top fin |
| Handles | Fitted at regular intervals along top of boom |
| Standard Inflation Pressure | 0.75 psi / 0.05 bar |
| Shipping Information | Normally supplied on reel |
| Anchoring Points | At every section connector |
| Cleaning | Industrial detergents, pressure washing |
*Other connectors available on request.

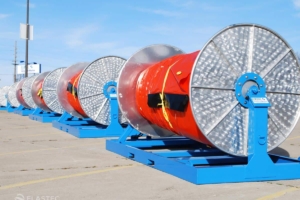

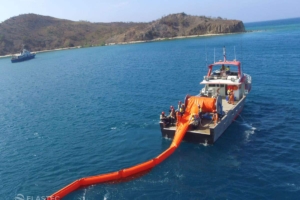

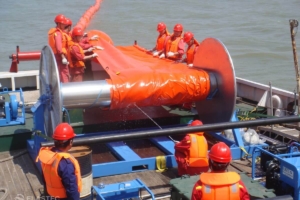

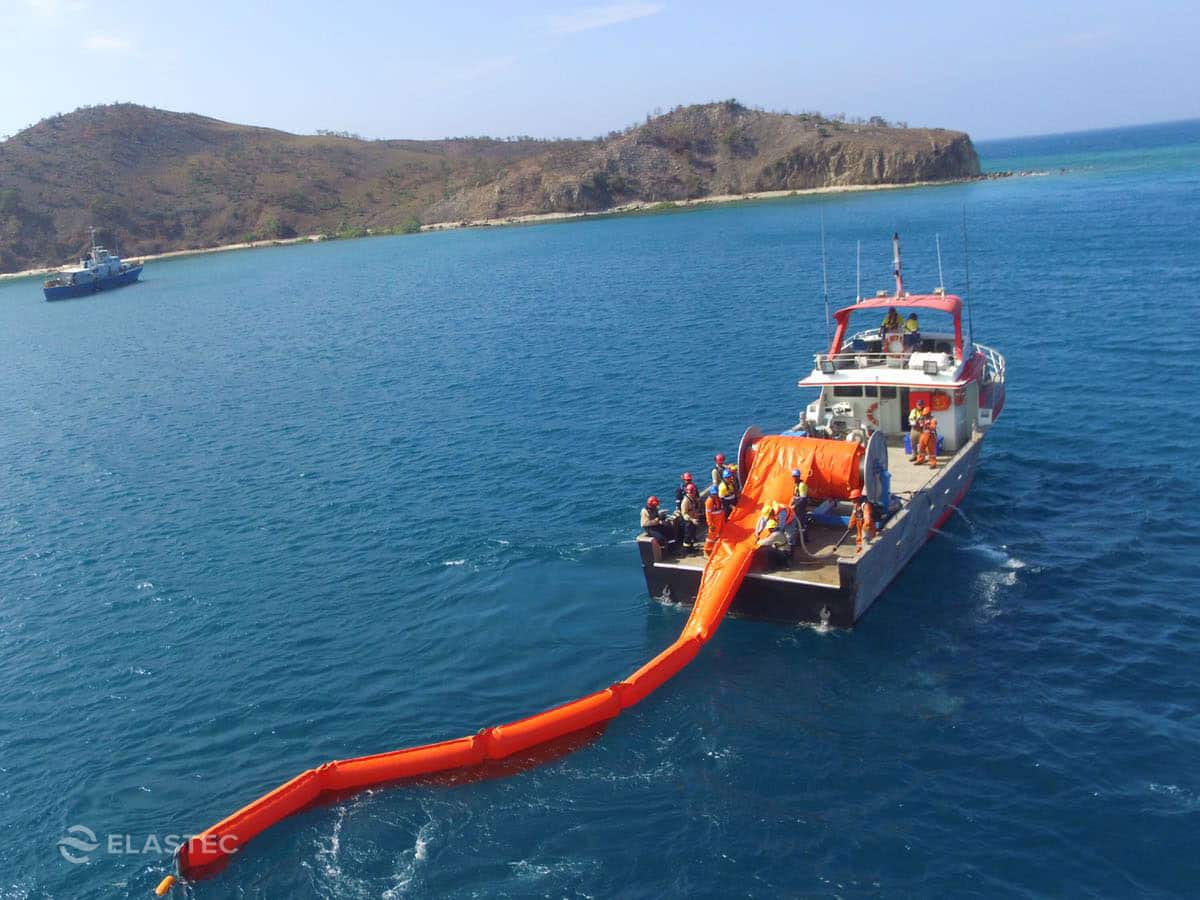

Containment Boom Reels

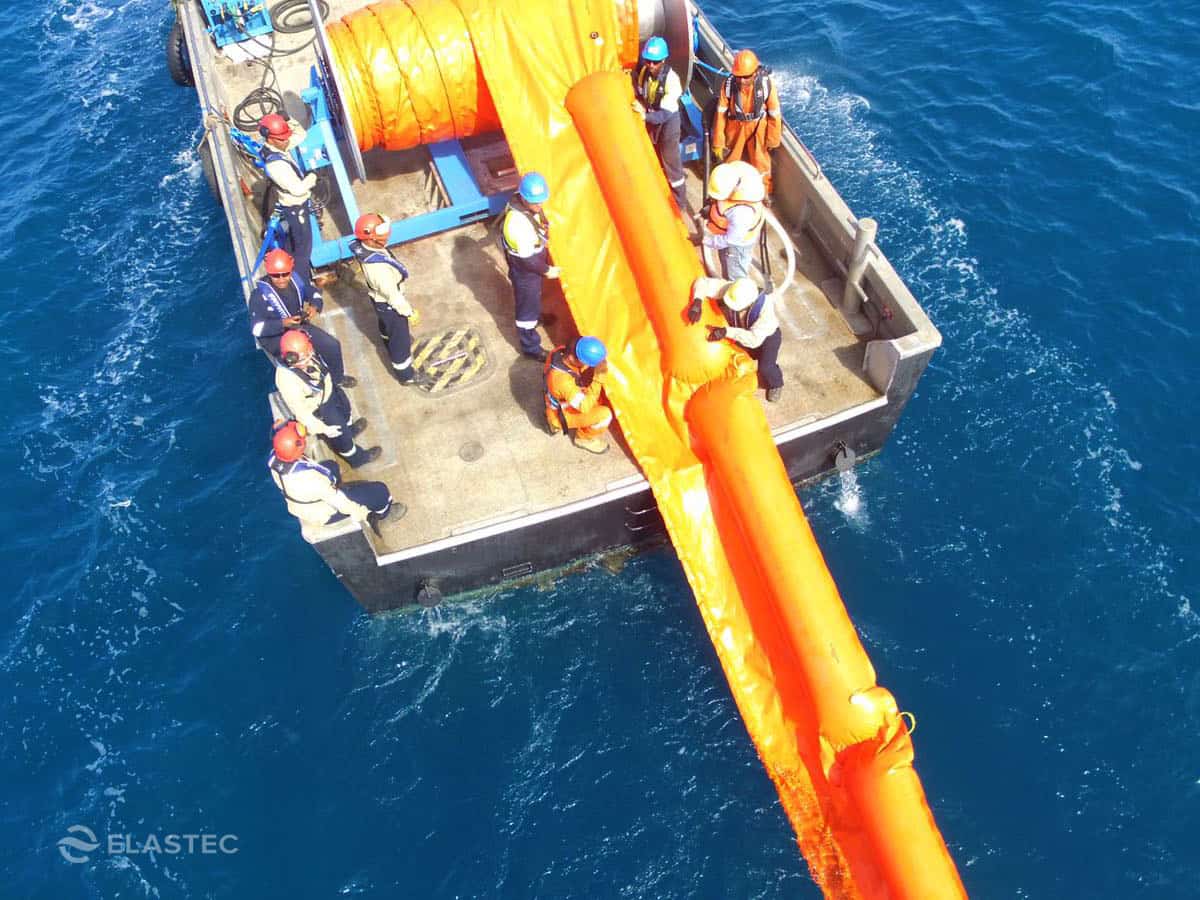

Oil containment boom reels are the fastest and most efficient means for storage, deployment and recovery of longer lengths of boom. Most of our reels have the ability to free-wheel to speed up deployment. Our boom reels may be hydraulic or manually operated and are suitable for both inflatable boom and some models of foam flotation boom.
